55082703400

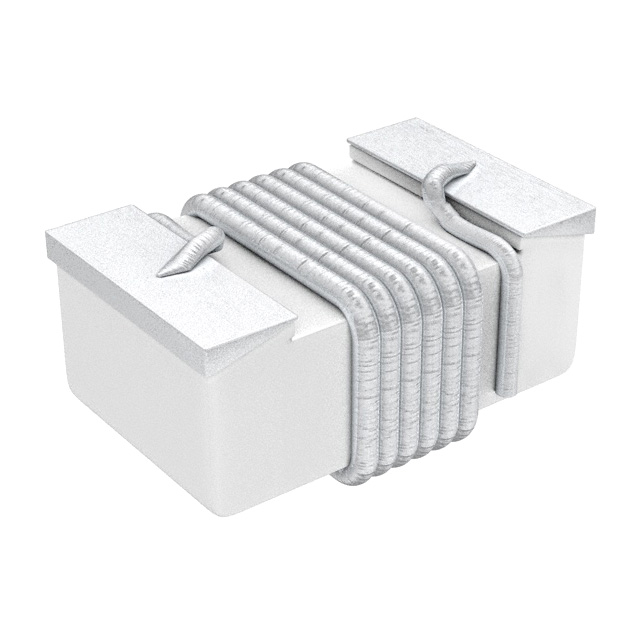

lmages are for reference only.55082703400
FIXED IND 27NH 600MA 90 MOHM SMD
Datasheet0805 (2012 Metric)
25,944 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 nH Unshielded Drum Core, Wirewound Inductor 600 mA 90mOhm Max 0805 (2012 Metric)
55082703400
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | 5508 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 27 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | 50 @ 250MHz |
| Frequency - Self Resonant | 2.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Height - Seated (Max) | 0.056" (1.42mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | 55082203400 | 55082213400 | 55082713400 | 5-1624109-2 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | FIXED IND 22NH 600MA 90 MOHM SMD | FIXED IND 220NH 240MA 550MOHM SM | FIXED IND 270NH 180MA 1 OHM SMD | FIXED IND 15NH 300MA 1.35OHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | TE Connectivity Passive Product |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
