Product CatalogPart Number
5520258-3
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN MOD JACK 6P6C VERT UNSHLD
Datasheet
DatasheetPackage
-
In Stock
45,253 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

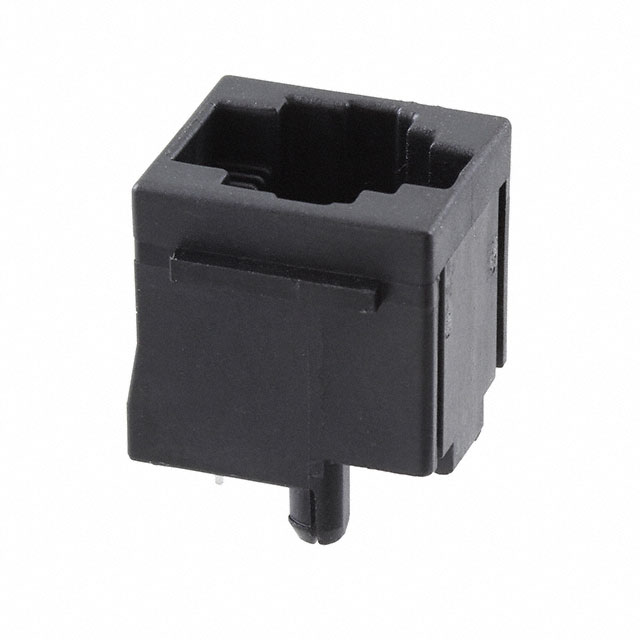

5520258-3
5520258-3
lmages are for reference only.Payment Methods
Delivery Services
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded Cat3
Quick Inquiry
5520258-3
Specifications
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Jack |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Orientation | Vertical |
| Termination | Solder |
| Shielding | Unshielded |
| Ratings | Cat3 |
| Features | Board Lock, Panel Stops |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Tab Direction | User Selectable |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Operating Temperature | -40°C ~ 85°C |
| Base Product Number | 5520258 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 5520258-2 | 5520258-4 | 5520250-1 | 5520250-2 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN MOD JACK 6P4C VERT UNSHLD | CONN MOD JACK 6P6C VERT UNSHLD | CONN MOD JACK 6P2C R/A UNSHLD | CONN MOD JACK 6P4C R/A UNSHLD |
| Series | - | - | - | - |
| Packaging | Tray | Tube | Tray | Tray |
Customers Also Interested in
Recommended Products

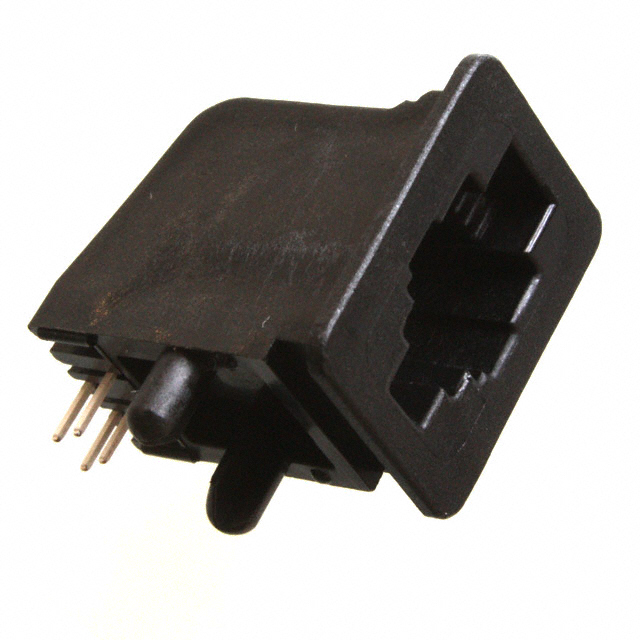

5520241-2
TE Connectivity AMP Connectors

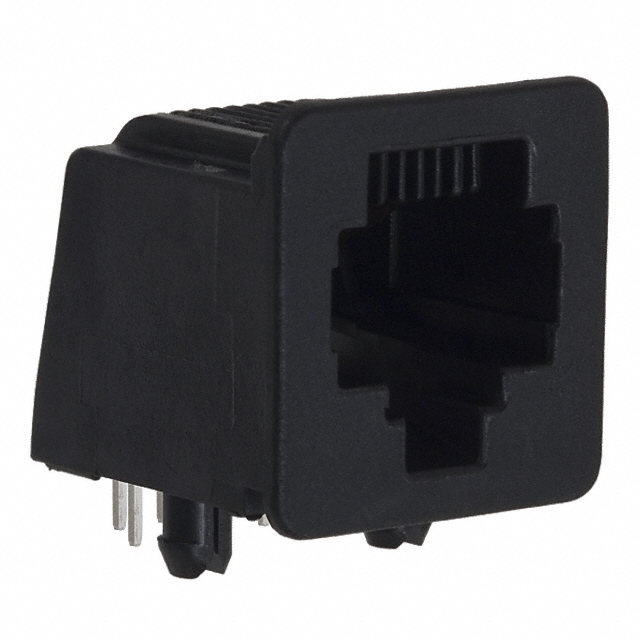

5520242-2
TE Connectivity AMP Connectors

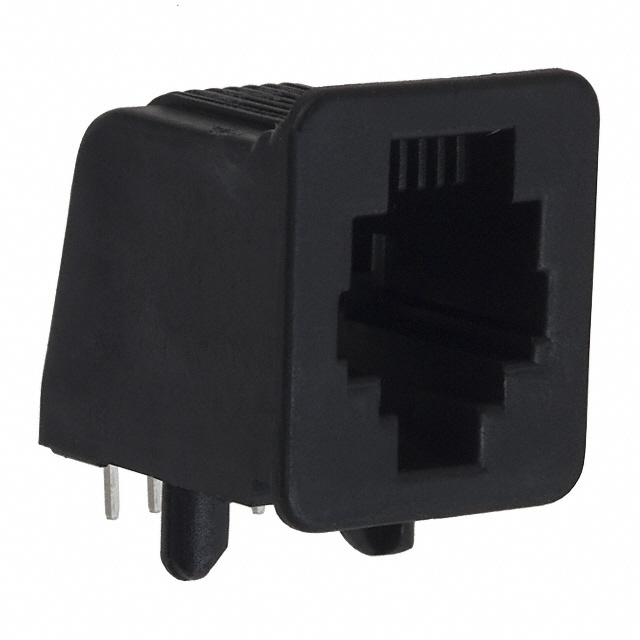

5520242-3
TE Connectivity AMP Connectors

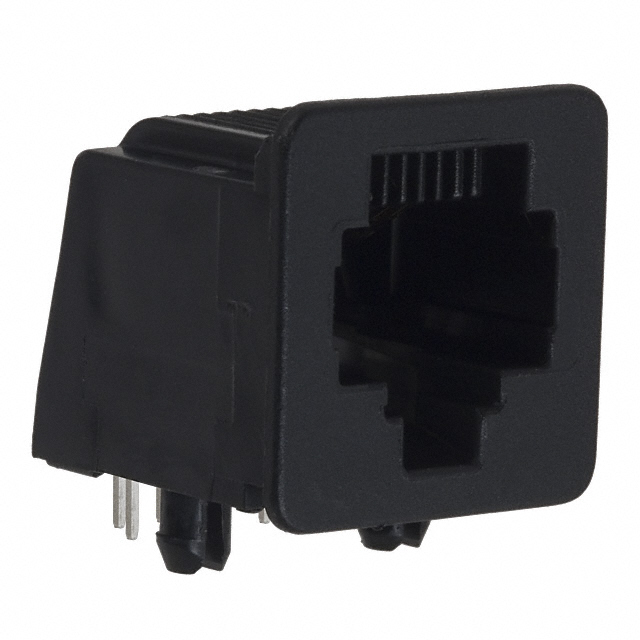

5520243-4
TE Connectivity AMP Connectors

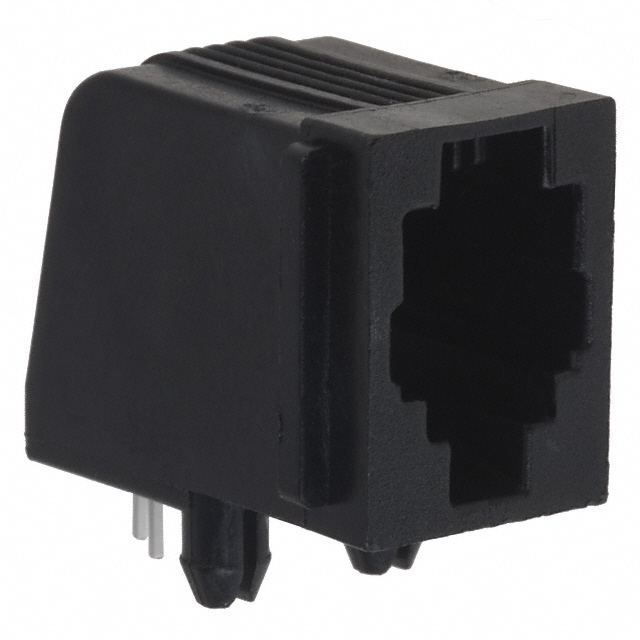

5520249-2
TE Connectivity AMP Connectors

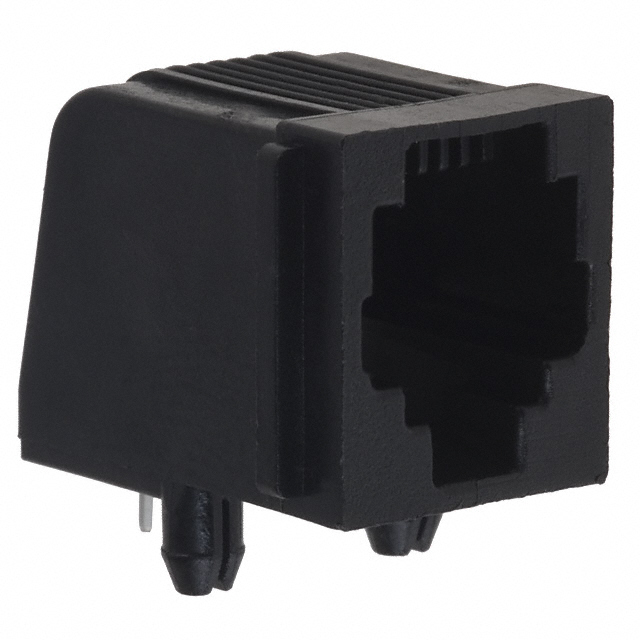

5520250-1
TE Connectivity AMP Connectors

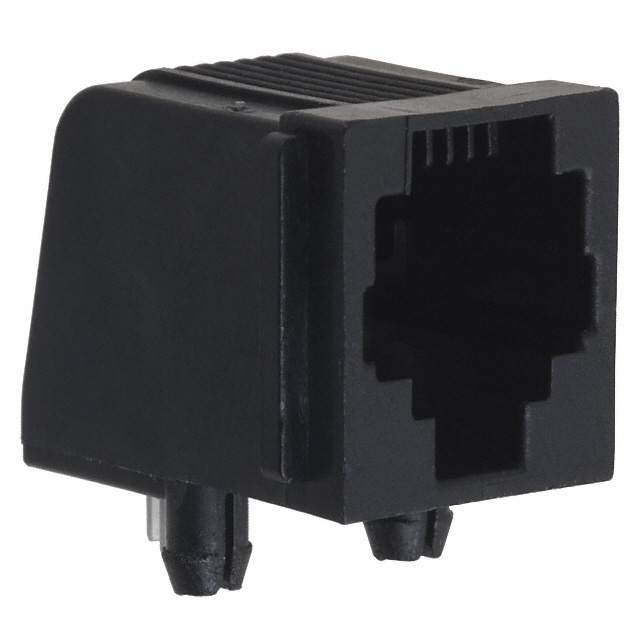

5520250-2
TE Connectivity AMP Connectors

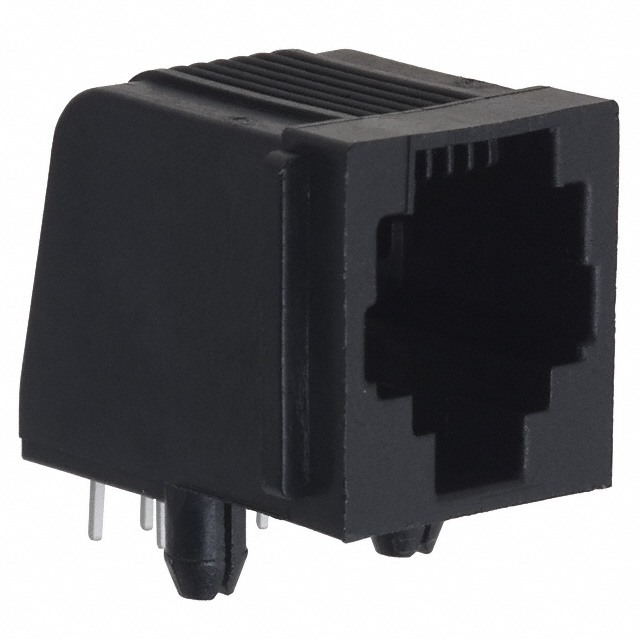

5520250-3
TE Connectivity AMP Connectors

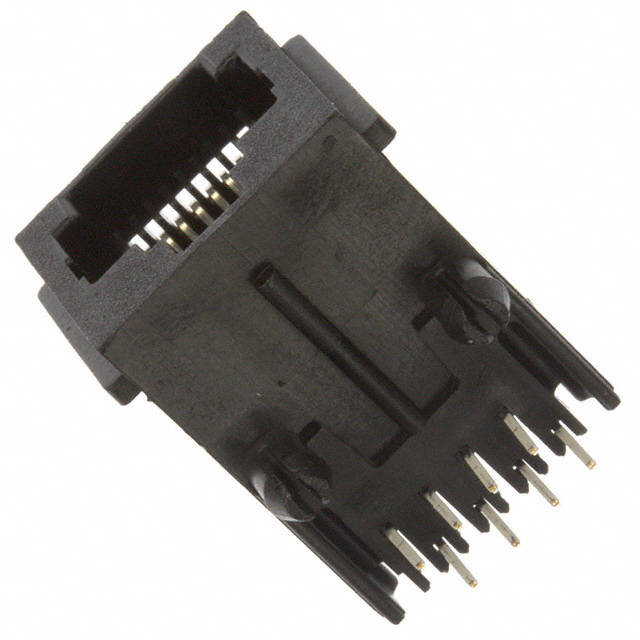

5520251-4
TE Connectivity AMP Connectors

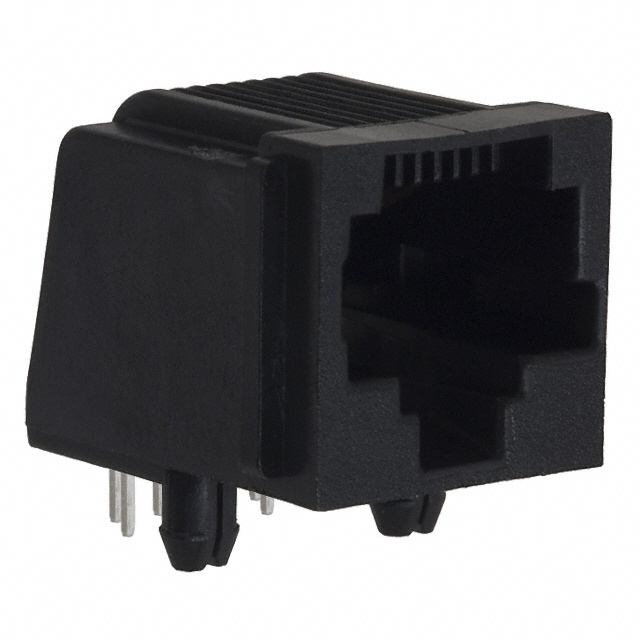

5520252-4
TE Connectivity AMP Connectors

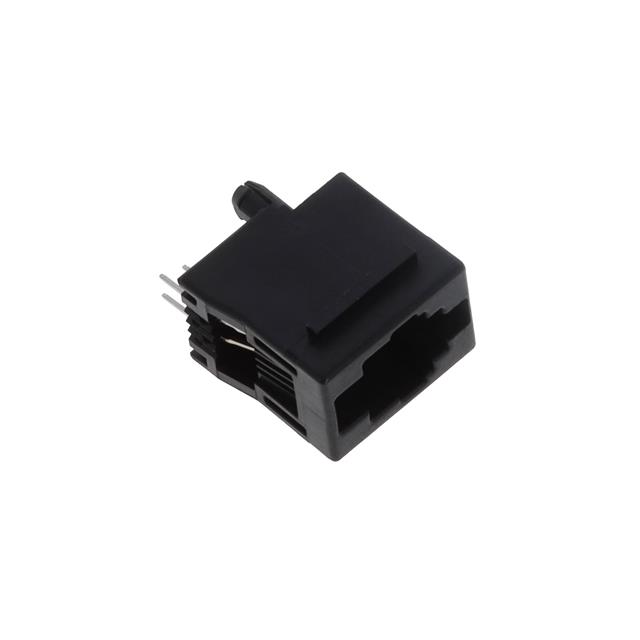

5520257-2
TE Connectivity AMP Connectors
5520258-2
TE Connectivity AMP Connectors
5520258-4
TE Connectivity AMP Connectors

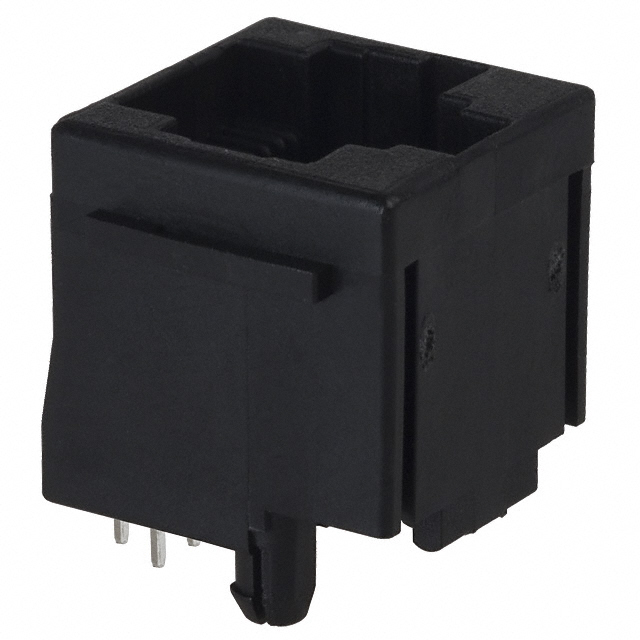

5520259-4
