55250-00-00-0
lmages are for reference only.55250-00-00-0
SENSOR ROTARY 105DEG CONNECTOR
DatasheetBox with Connector
38,210 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Recessed Slot Connector
55250-00-00-0
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 105°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Recessed Slot |
| Linearity | - |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 552-99-010 | 55200-00-02-A | 55200-00-02-C | MLX90513GGO-CAA-100-SP |
| Manufacturer | CTS Electrocomponents | Littelfuse Inc. | Littelfuse Inc. | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

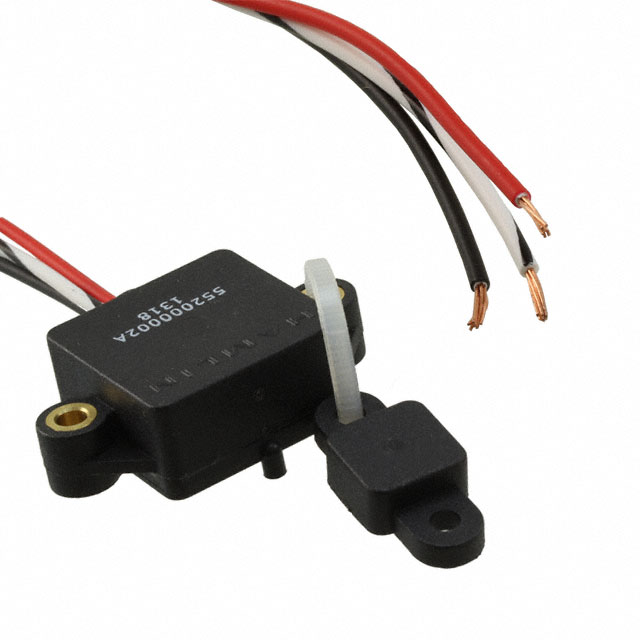

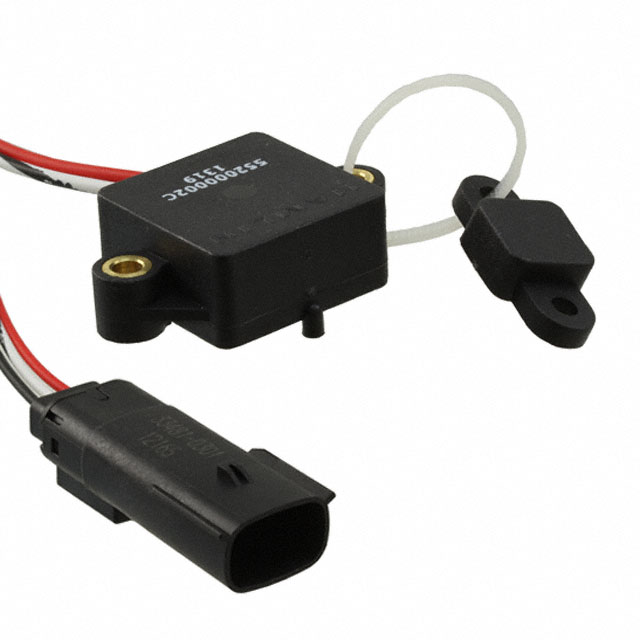

| Description | ACCELERATOR PEDAL | SENSOR ANGLE 360DEG WIRE LEADS | SENSOR HALL ABSOLUTE POS ROTATE | INDUCTIVE POSITION SENSOR ASSP W |
| Series | 552 | - | - | - |
| Packaging | Box | Box | Box | Bulk |
