Product CatalogPart Number
561R10TCCQ56
Manufacturer
Vishay Cera-MiteDescription
CAP CER 56PF 1KV NP0 RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
71,471 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
561R10TCCQ56
561R10TCCQ56

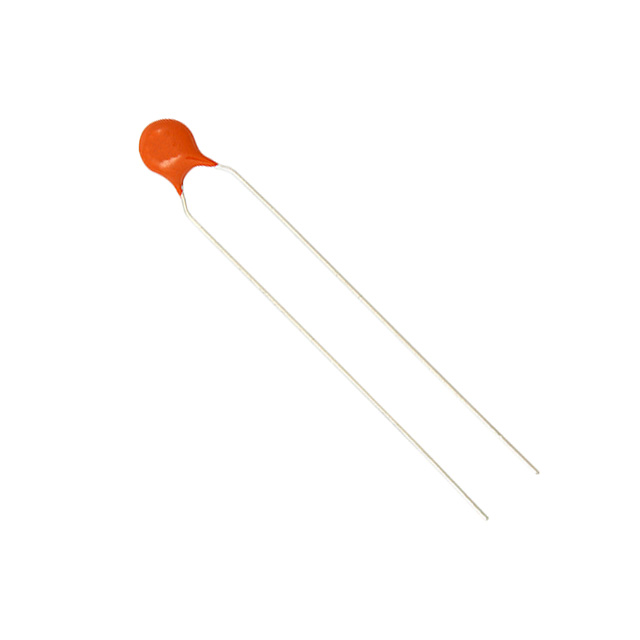

lmages are for reference only.Payment Methods
Delivery Services
56 pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 Radial, Disc
Quick Inquiry
561R10TCCQ56
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Cera-Mite |
| Series | Cera-Mite 561R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 56 pF |
| Tolerance | ±5% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 105°C |
| Features | Low Dissipation Factor |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.441" Dia (11.20mm) |
| Height - Seated (Max) | 0.566" (14.38mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.252" (6.40mm) |
| Lead Style | Straight |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 561R10TCCQ50 | 561R10TCCQ56TR | 561R10TCCQ10 | 561R10TCCQ10BA |
| Manufacturer | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 50PF 1KV NP0 RADIAL | CAP CER 56PF 1KV NP0 RADIAL | CAP CER 10PF 1KV NP0 RADIAL | CAP CER 10PF 1KV NP0 RADIAL |
| Series | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bulk |
