Product CatalogPart Number
57102-G08-20ULF
Manufacturer
Amphenol ICC (FCI)Description
CONN HEADER VERT 40POS 2MM
Datasheet
DatasheetPackage
-
In Stock
93,893 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
57102-G08-20ULF
57102-G08-20ULF
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 40 position 0.079" (2.00mm)
Quick Inquiry
57102-G08-20ULF
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Minitek® 2.00mm |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.335" (8.51mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A (AC/DC) |
| Voltage Rating | 200V (AC/DC) |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | 57102 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 57102-G08-20 | 57102-G08-20LF | 57102-G08-02 | 57102-G08-02LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | RoHS Compliant |
| Description | CONN HEADER VERT 40POS 2MM | CONN HEADER VERT 40POS 2MM | CONN HEADER VERT 4POS 2MM | CONN HEADER VERT 4POS 2MM |
| Series | Minitek® 2.00mm | Minitek® 2.00mm | Minitek® 2.00mm | Minitek® 2.00mm |
| Packaging | Bulk | Box | Bulk | Box |
Customers Also Interested in
Recommended Products
57102-F02-02LF
Amphenol ICC (FCI)
57102-F02-03LF
Amphenol ICC (FCI)
57102-F02-09LF
Amphenol ICC (FCI)
57102-F02-13LF
Amphenol ICC (FCI)
57102-F02-18ULF
Amphenol ICC (FCI)
57102-F02-24LF
Amphenol ICC (FCI)
57102-F04-04LF
Amphenol ICC (FCI)
57102-F06-02LF
Amphenol ICC (FCI)
57102-F06-03LF
Amphenol ICC (FCI)
57102-F06-04LF
Amphenol ICC (FCI)

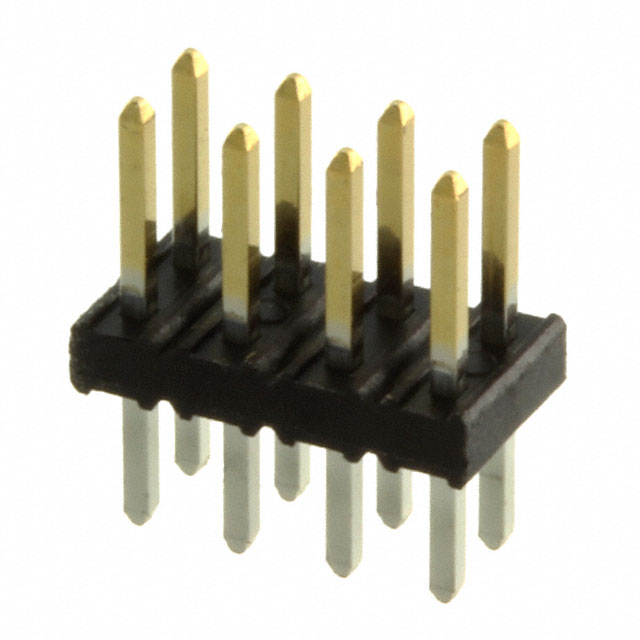

57102-F06-04U
Amphenol ICC (FCI)
57102-F06-04ULF
Amphenol ICC (FCI)
57102-F06-05LF
Amphenol ICC (FCI)
57102-F06-05ULF
Amphenol ICC (FCI)

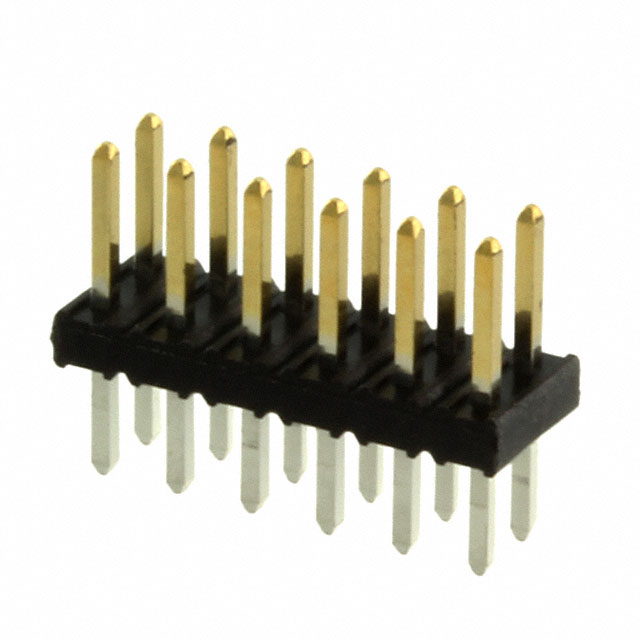

57102-F06-06LF
Amphenol ICC (FCI)
57102-F06-06ULF
Amphenol ICC (FCI)
57102-F06-07LF
Amphenol ICC (FCI)

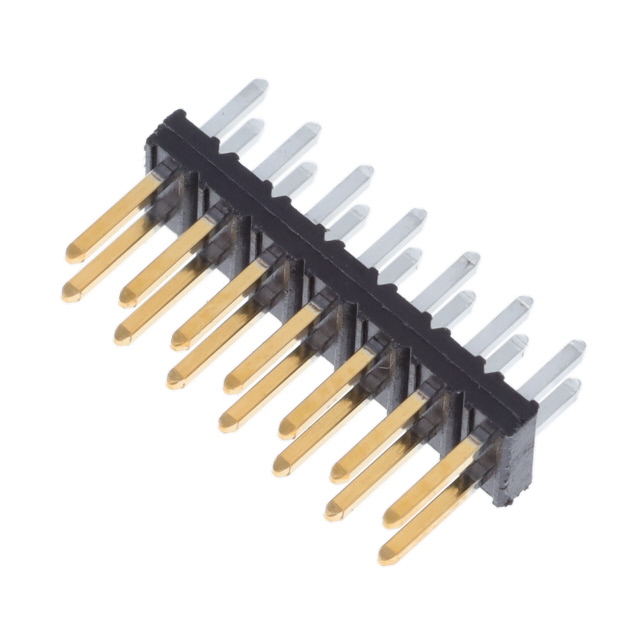

57102-F06-07ULF
