Product CatalogPart Number
5810148002
Manufacturer
Cinch Connectivity SolutionsDescription
CONN HEADER R/A 48POS
Datasheet
DatasheetPackage
-
In Stock
29,434 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5810148002
5810148002
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 48 position
Quick Inquiry
5810148002
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Cinch Connectivity Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 48 |
| Number of Rows | 3 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.166" (4.22mm) |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Features | Ferrite Filter |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | - |
| Insulation Color | Natural |
| Current Rating (Amps) | 10A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | 581 01 48 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

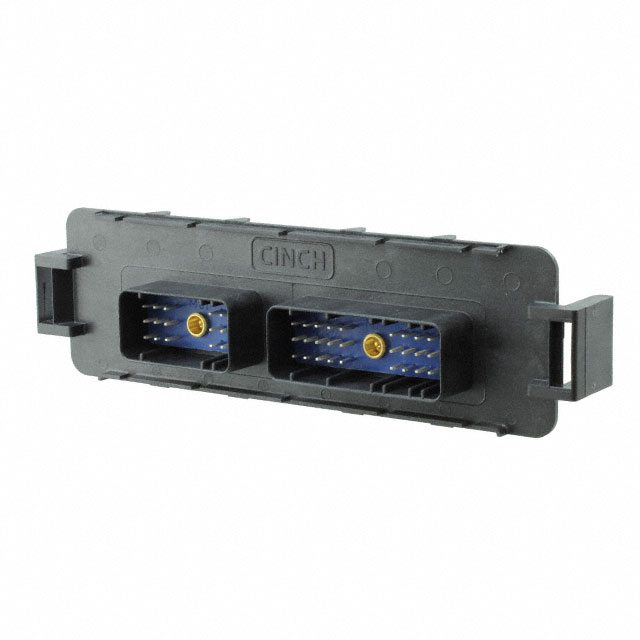

| Part Number | 5810148003 | 5810148005 | 5810148006 | 5810148007 |
| Manufacturer | Cinch Connectivity Solutions | Cinch Connectivity Solutions | Cinch Connectivity Solutions | Cinch Connectivity Solutions |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN HEADER R/A 48POS | CONN HEADER R/A 48POS | CONN HEADER R/A 48POS | CONN HEADER R/A 48POS |
| Series | - | ModICE® SE | ModICE® LE | ModICE® SE |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
58101-S61-02LF
Amphenol ICC (FCI)

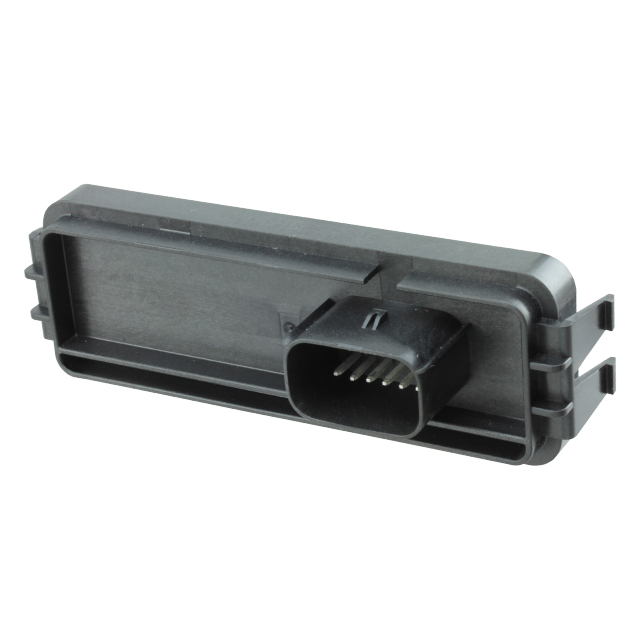

5810112011
Cinch Connectivity Solutions
5810118002
Cinch Connectivity Solutions
5810118011
Cinch Connectivity Solutions
5810118012
Cinch Connectivity Solutions
5810118032
Cinch Connectivity Solutions
5810118033
Cinch Connectivity Solutions
5810118036
Cinch Connectivity Solutions
5810118038
Cinch Connectivity Solutions
5810118039
Cinch Connectivity Solutions
5810120011
Cinch Connectivity Solutions
5810124011
Cinch Connectivity Solutions
5810130001
Cinch Connectivity Solutions
5810130012
Cinch Connectivity Solutions
5810130016
Cinch Connectivity Solutions

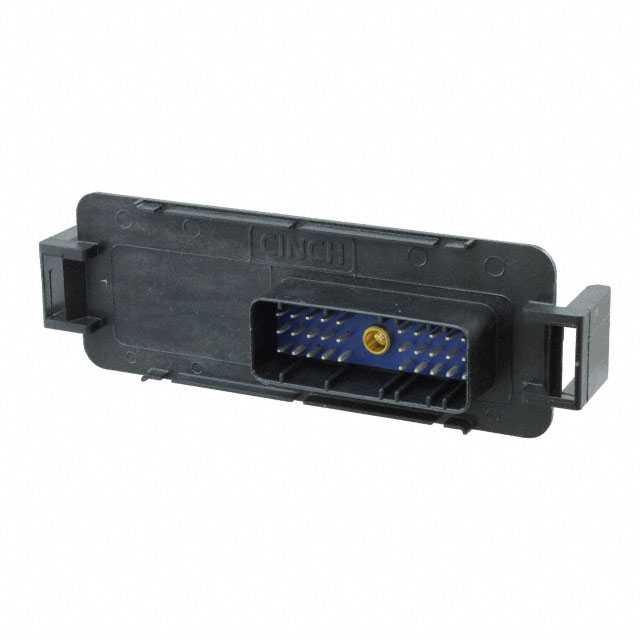

5810130044
