591D156X9020C2T15H

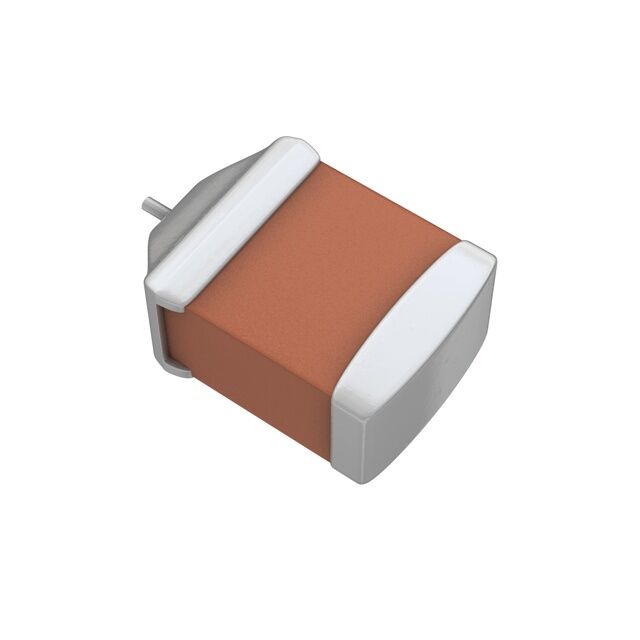

lmages are for reference only.591D156X9020C2T15H
CAP TANT 15UF 10% 20V 2812
Datasheet2812 (7132 Metric)
68,751 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µF Conformal Coated Tantalum Capacitors 20 V 2812 (7132 Metric) 300mOhm
591D156X9020C2T15H
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | TANTAMOUNT™, 591D |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±10% |
| Voltage - Rated | 20 V |
| Type | Conformal Coated |
| ESR (Equivalent Series Resistance) | 300mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 2812 (7132 Metric) |
| Size / Dimension | 0.280" L x 0.126" W (7.10mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Lead Spacing | - |
| Manufacturer Size Code | C |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | 591D156X0016B2T15H | 591D156X0016D2T15H | 591D156X0020C2T15H | 591D156X0025R2T15H |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 15UF 20% 16V 1611 | CAP TANT 15UF 20% 16V 2917 | CAP TANT 15UF 20% 20V 2812 | CAP TANT 15UF 20% 25V 2824 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
