Product CatalogPart Number
5972413407F
Manufacturer
DialightDescription
LED YELLOW CLEAR 1208 SMD R/A
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
16,817 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5972413407F
5972413407F
lmages are for reference only.Payment Methods
Delivery Services
Yellow 586nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Quick Inquiry
5972413407F
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Dialight |
| Series | 597 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 8.8mcd |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 586nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 1208 |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.00mm |
| Base Product Number | 5972413 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

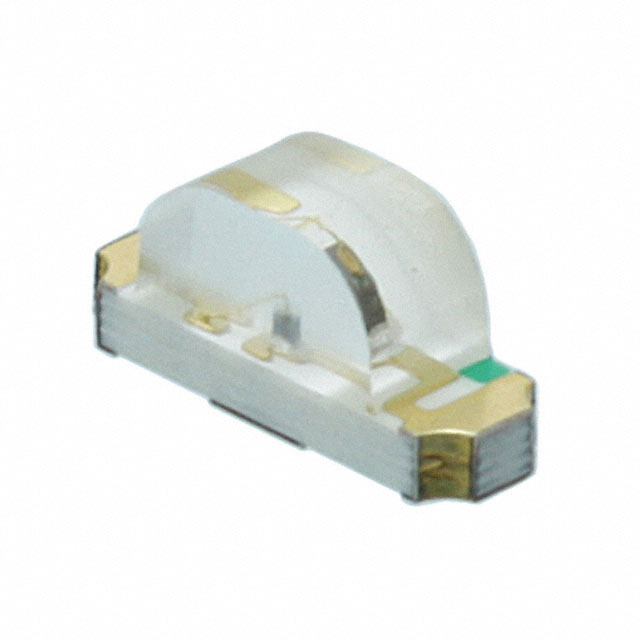

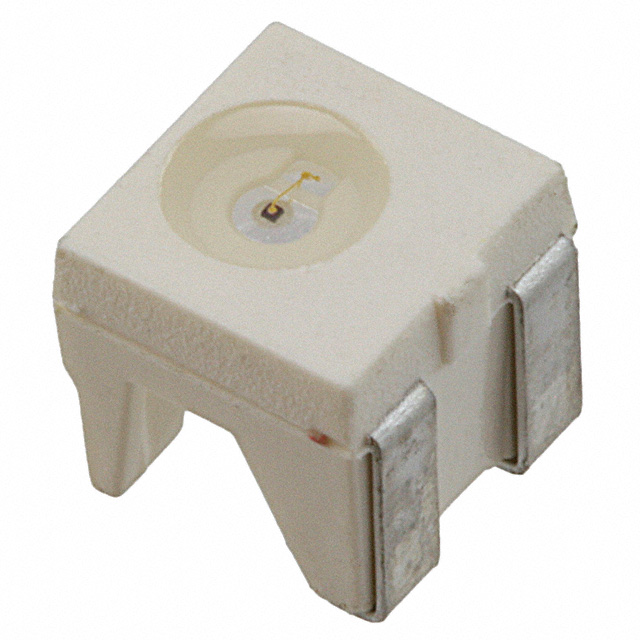

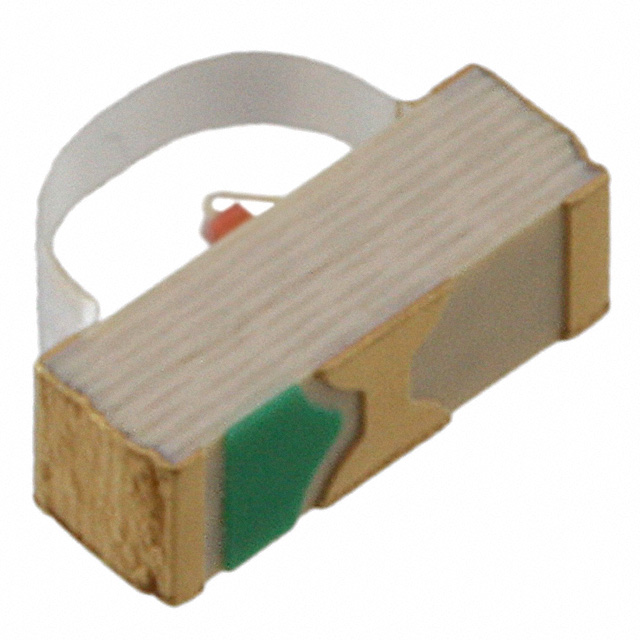

| Part Number | 5972413402F | 5972401202F | 5972401213F | 5972401407 |
| Manufacturer | Dialight | Dialight | Dialight | Dialight |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | LED YELLOW CLEAR 1208 SMD R/A | LED YELLOW CLEAR SMD R/A | LED YELLOW CLEAR SMD R/A | LED YELLOW CLEAR 1208 SMD R/A |
| Series | Dialight | Dialight | Dialight | Dialight |
| Packaging | Strip | Strip | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
