Product CatalogPart Number
5977721502F
Manufacturer
DialightDescription
LED GREEN/YELLOW CLEAR 1210 SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
27,981 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5977721502F
5977721502F
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 575nm Green, 589nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 4-SMD, No Lead
Quick Inquiry
5977721502F
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Dialight |
| Series | 597 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 21mcd Green, 10mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 2.10mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 575nm Green, 589nm Yellow |
| Wavelength - Peak | 570nm Green, 585nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 1210 |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.30mm |
| Base Product Number | 5977721 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

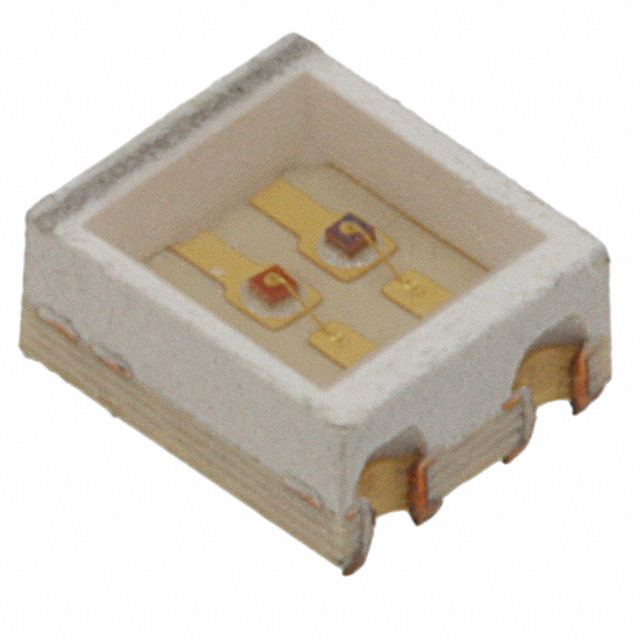

| Part Number | 5977721507F | 5977701102F | 5977701107 | 5977701107F |
| Manufacturer | Dialight | Dialight | Dialight | Dialight |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED GREEN/YELLOW CLEAR 1210 SMD | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 4SMD |
| Series | Dialight | Dialight | Dialight | Dialight |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
5977701102F
Dialight
5977701107
Dialight
5977701107F
Dialight
5977701202F
Dialight
5977701202LCF
Dialight
5977701202LF
Dialight

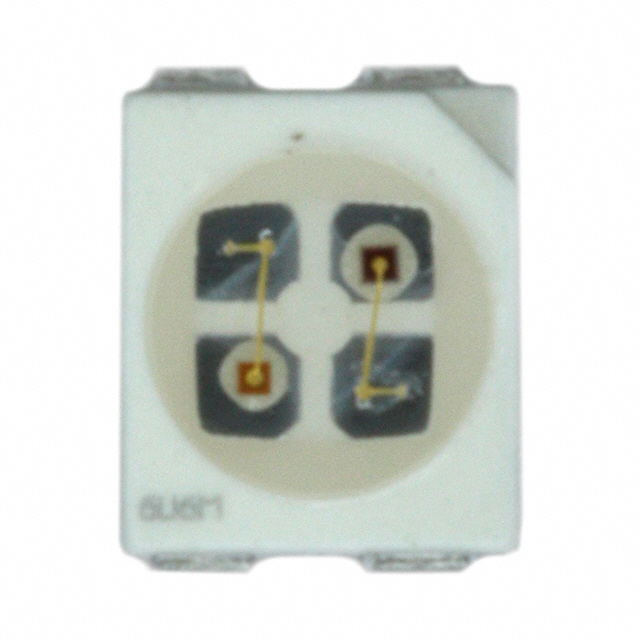

5977701207
