Product CatalogPart Number
5KP20A-B
Manufacturer
Littelfuse Inc.Description
TVS DIODE 20VWM 32.4VC P600
Datasheet
DatasheetPackage
P600, Axial
In Stock
69,221 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
5KP20A-B
5KP20A-B
lmages are for reference only.Payment Methods
Delivery Services
32.4V Clamp 157.4A Ipp Tvs Diode Through Hole P600
Quick Inquiry
5KP20A-B
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | 5KP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 20V |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V |
| Current - Peak Pulse (10/1000µs) | 157.4A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | 5KP2 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 5KP20A-AT/B | 5KP20A-AT/TR13 | 5KP20A-E3/51 | 5KP20A-E3/54 |
| Manufacturer | YAGEO | YAGEO | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TVS P600 20V 32.4V AUTO BOX | TVS P600 20V 32.4V AUTO | TVS DIODE 20VWM 32.4VC P600 | TVS DIODE 20VWM 32.4VC P600 |
| Series | YAGEO | YAGEO | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
5KP20
Littelfuse Inc.

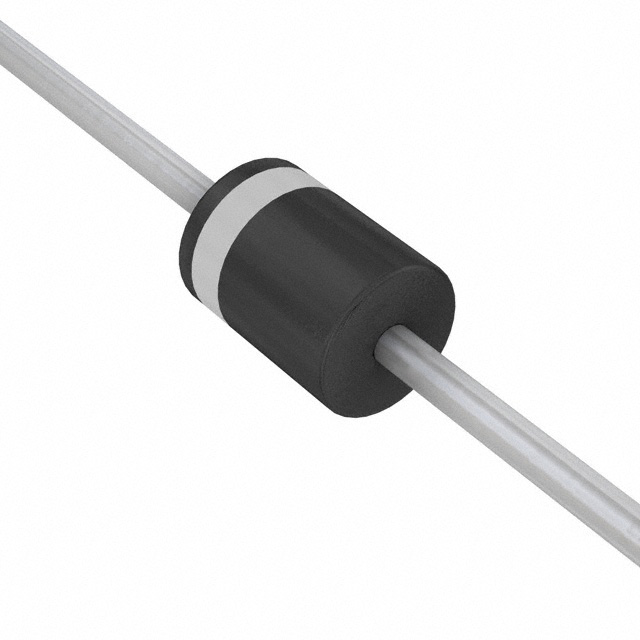

5KP20-B
Littelfuse Inc.
5KP20-E3/54
Vishay General Semiconductor - Diodes Division
5KP20-E3/73
Vishay General Semiconductor - Diodes Division
5KP200
Littelfuse Inc.
5KP200-B
Littelfuse Inc.
5KP200A
Littelfuse Inc.
5KP200A-AT/B
YAGEO
5KP200A-AT/TR13
YAGEO
5KP200A-B
Littelfuse Inc.
5KP200A-HR
Littelfuse Inc.
5KP200A-HRA
Littelfuse Inc.
5KP200A/B
YAGEO

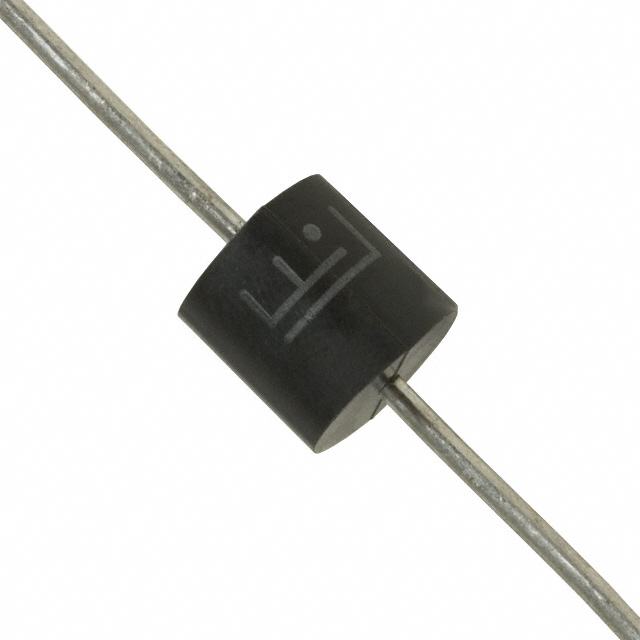

5KP200A/TR13
YAGEO
5KP200AE3/TR13
Microchip Technology
5KP200A_R2_00001
Panjit International Inc.

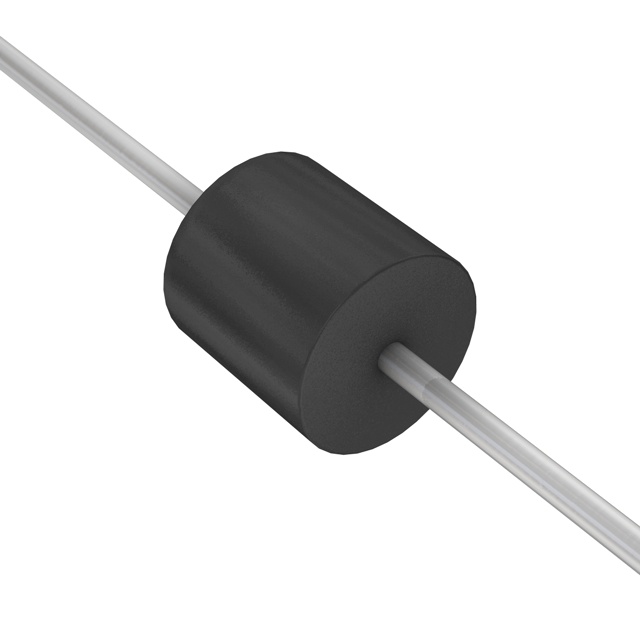

5KP200C
