Product CatalogPart Number
6-487509-3
Manufacturer
TE ConnectivityDescription
TRIOMATE ASY V14P L=4.064,LDFR
Datasheet
DatasheetPackage
-
In Stock
39,412 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
6-487509-3
6-487509-3
lmages are for reference only.Payment Methods
Delivery Services
14 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
Quick Inquiry
6-487509-3
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | TE Connectivity |
| Series | Triomate |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 14 |
| Pitch | 0.100" (2.54mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.190" (4.83mm) |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Actuator Material | - |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 250V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Contact Finish Thickness | 5.00µin (0.127µm) |
| Housing Color | Black |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

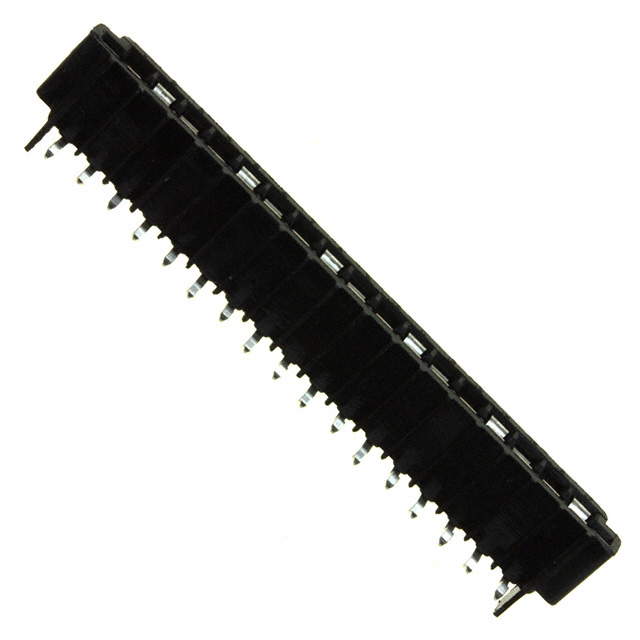

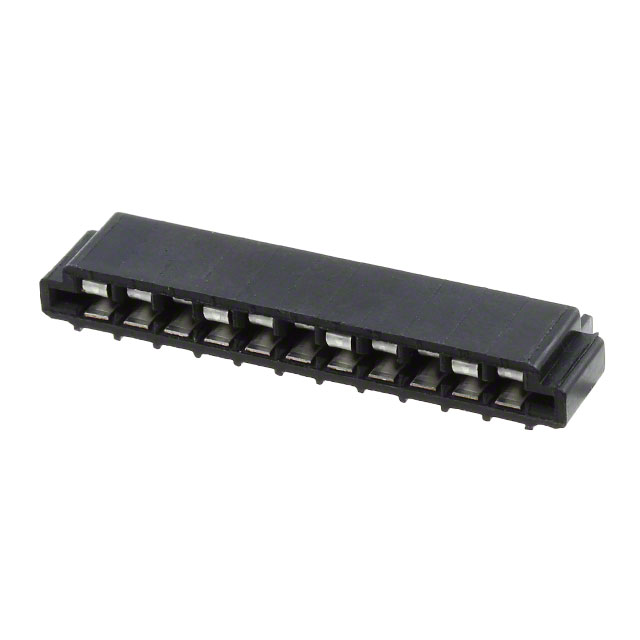

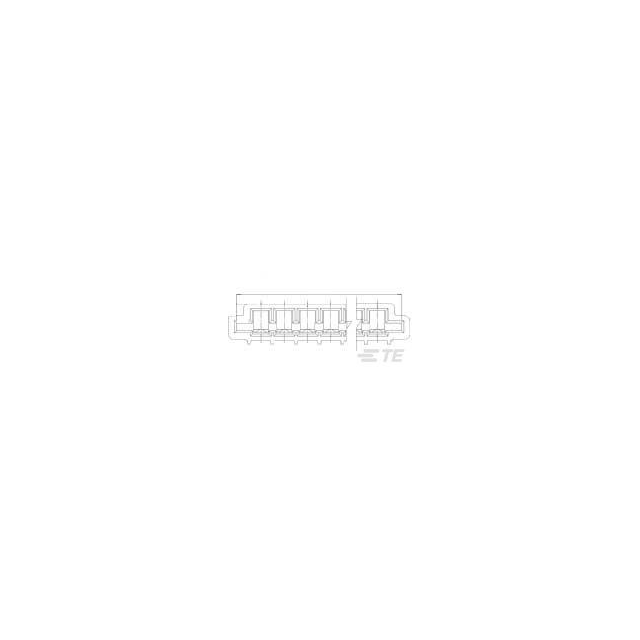

| Part Number | 6-487509-8 | 6-487508-0 | 6-487508-3 | 6-487508-8 |
| Manufacturer | TE Connectivity | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TRIOMATE ASY V19P L=4.064,LDFR | CONN FFC FPC TOP 11POS 2.54MM RA | CONN FFC FPC TOP 14POS 2.54MM RA | CONN FFC FPC TOP 17POS 2.54MM RA |
| Series | Triomate | Triomate | Triomate | Triomate |
| Packaging | Box | Bulk | Bulk | Bulk |
