Product CatalogPart Number
615R100GAD25
Manufacturer
Vishay Cera-MiteDescription
CAP CER 2500PF 10KV Z5U RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
56,056 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
615R100GAD25
615R100GAD25
lmages are for reference only.Payment Methods
Delivery Services
2500 pF -20%, +80% 10000V (10kV) Ceramic Capacitor Z5U Radial, Disc
Quick Inquiry
615R100GAD25
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Cera-Mite |
| Series | Cera-Mite 615R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2500 pF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 10000V (10kV) |
| Temperature Coefficient | Z5U |
| Operating Temperature | -25°C ~ 105°C |
| Features | High Voltage |
| Ratings | - |
| Applications | SMPS Filtering |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.752" Dia (19.10mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.500" (12.70mm) |
| Lead Style | Straight |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

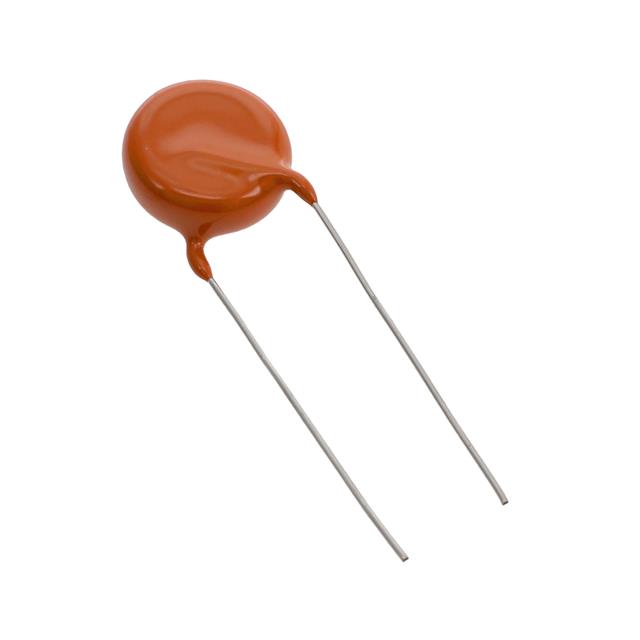

| Part Number | 615R100GAD10 | 615R100GAD47 | 615R100GATD10 | 615R100GATT82 |
| Manufacturer | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

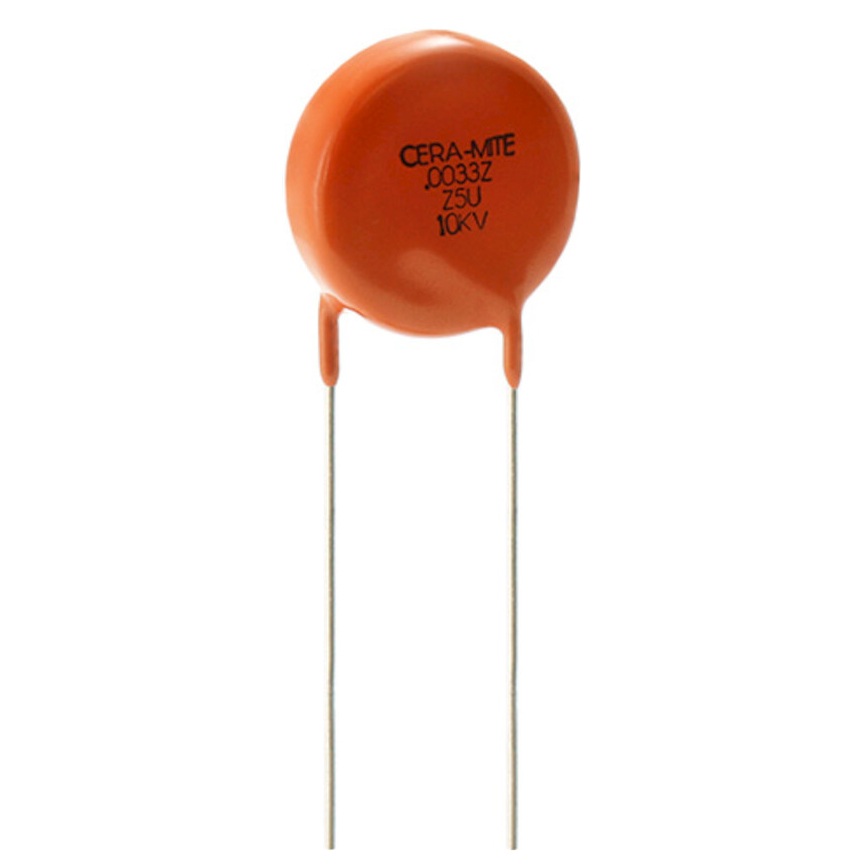

| Description | CAP CER 1000PF 10KV Y5R RADIAL | CAP CER 4700PF 10KV RADIAL | CAP CER 1000PF 10KV N4700 RADIAL | CAP CER 820PF 10KV N4700 RADIAL |
| Series | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite | Vishay Cera-Mite |
| Packaging | Bulk | Bulk | Bulk | Bulk |
