Product CatalogPart Number
63429-232LF
Manufacturer
Amphenol ICC (FCI)Description
CONN SHUNT
Datasheet
DatasheetPackage
-
In Stock
38,187 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
63429-232LF
63429-232LF
lmages are for reference only.Payment Methods
Delivery Services
2 (1 x 2) Position Shunt Connector Blue Open Top 0.100" (2.54mm) Gold
Quick Inquiry
63429-232LF
Specifications
| Category | Connectors, Interconnects - Shunts-Jumpers - |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Mini-Jump™ |
| Packaging | Bag |
| RoHS Status | RoHS Compliant |
| Type | Open Top |
| Gender | Female Sockets |
| Number of Positions or Pins (Grid) | 2 (1 x 2) |
| Pitch | 0.100" (2.54mm) |
| Height | 0.236" (6.00mm) |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polyester, Glass Filled |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Base Product Number | 63429 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 63429-102LF | 63429-112LF | 63429-132 | 63429-132LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | |
| Description | CONN SHUNT | CONN SHUNT | JUMPER BLUE | JUMPER BLUE |
| Series | Mini-Jump™ | Mini-Jump™ | Mini-Jump™ | Mini-Jump™ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
63429-102LF
Amphenol ICC (FCI)
63429-112LF
Amphenol ICC (FCI)
63429-132
Amphenol ICC (FCI)
63429-132LF
Amphenol ICC (FCI)
63429-142LF
Amphenol ICC (FCI)

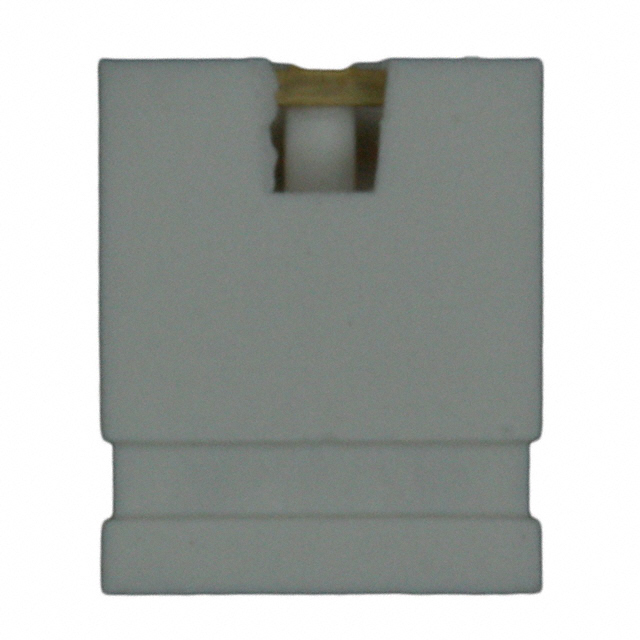

63429-202LF
