Product CatalogPart Number

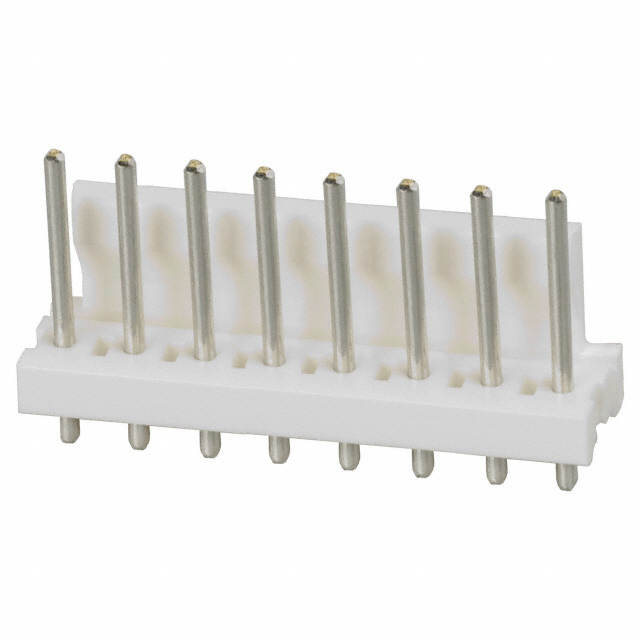

640388-8
Manufacturer
TE Connectivity AMP ConnectorsDescription
CONN HEADER VERT 8POS 3.96MM
Datasheet
DatasheetPackage
-
In Stock
40,128 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
640388-8
640388-8
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 8 position 0.156" (3.96mm)
Quick Inquiry
640388-8
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | MTA-156 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.400" (10.16mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | 0.650" (16.51mm) |
| Insulation Height | 0.425" (10.80mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | General Purpose, Industrial |
| Base Product Number | 640388 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

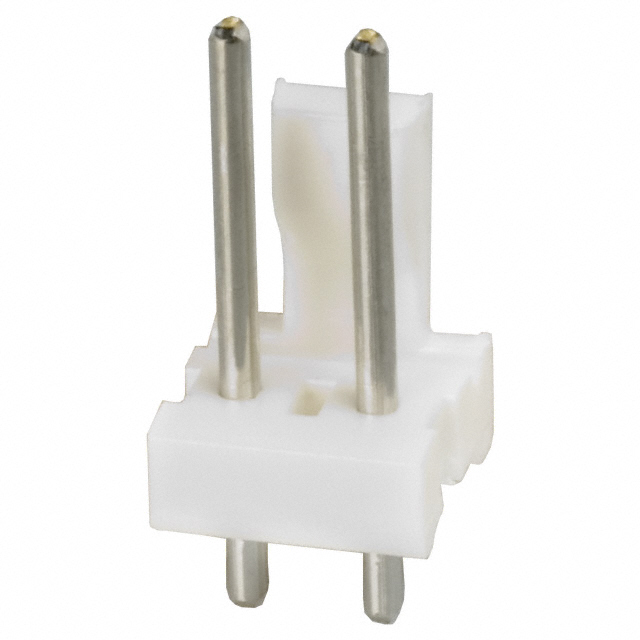

| Part Number | 640388-2 | 640388-3 | 640388-4 | 640388-5 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CONN HEADER VERT 2POS 3.96MM | CONN HEADER VERT 3POS 3.96MM | CONN HEADER VERT 4POS 3.96MM | CONN HEADER VERT 5POS 3.96MM |
| Series | MTA-156 | MTA-156 | MTA-156 | MTA-156 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

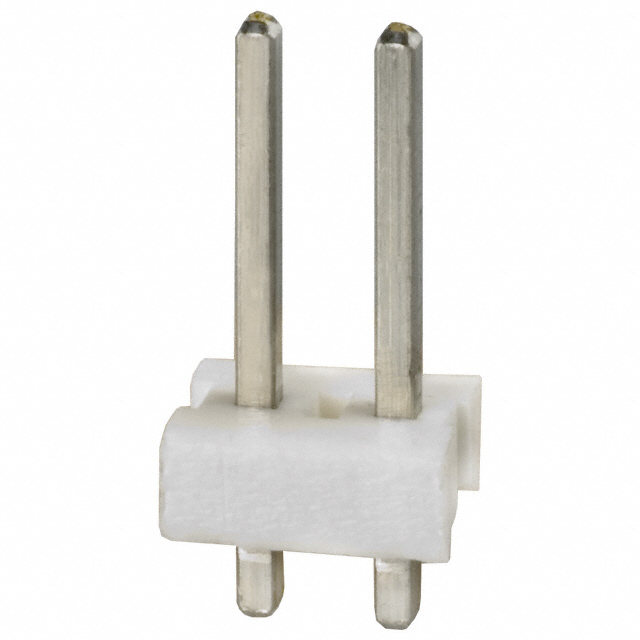

640383-2
TE Connectivity AMP Connectors
640383-3
TE Connectivity AMP Connectors
640383-4
TE Connectivity AMP Connectors
640383-5
TE Connectivity AMP Connectors
640383-6
TE Connectivity AMP Connectors
640383-7
TE Connectivity AMP Connectors
640383-8
TE Connectivity AMP Connectors

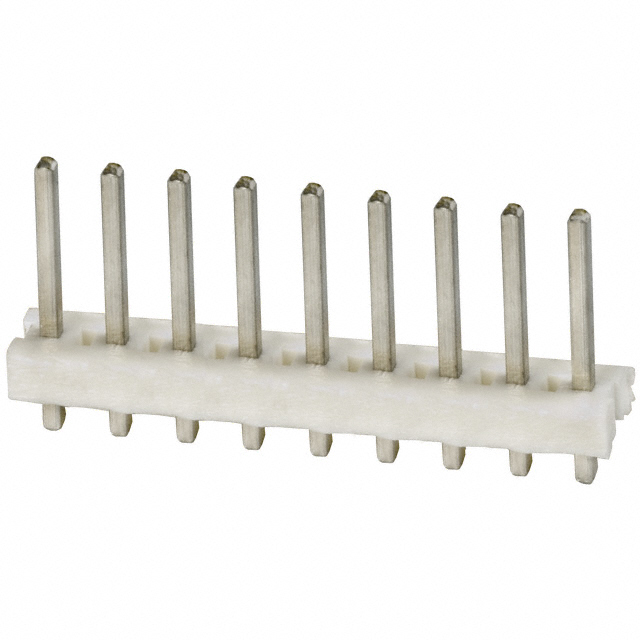

640383-9
