Product CatalogPart Number
65801-036
Manufacturer
Amphenol ICC (FCI)Description
CLINCHER RECEPTACLE ASSY GOLD
Datasheet
DatasheetPackage
-
In Stock
58,149 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
65801-036
65801-036

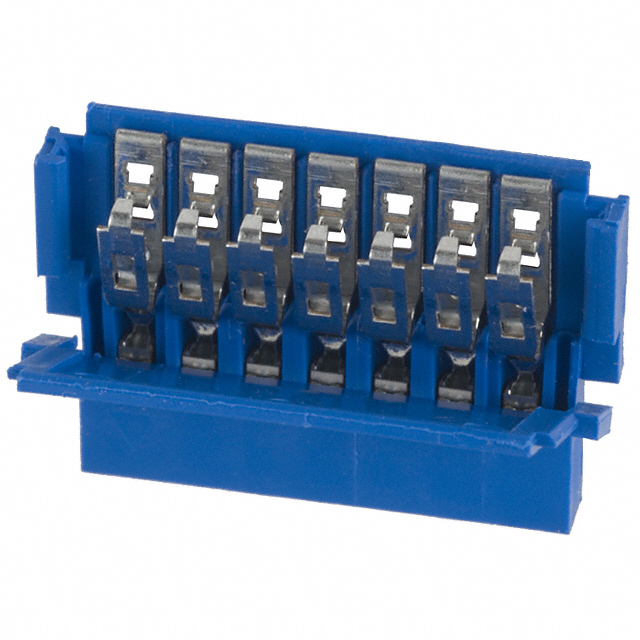

lmages are for reference only.Payment Methods
Delivery Services
7 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Quick Inquiry
65801-036
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Clincher™ |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Free Hanging (In-Line) |
| Connector/Contact Type | Receptacle |
| Number of Positions | 7 |
| Pitch | 0.100" (2.54mm) |
| Termination | IDC |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | - |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Copper Nickel Alloy |
| Contact Finish | Gold or Gold, GXT™ |
| Housing Material | Thermoplastic |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 500V |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Housing Color | Blue |
| Actuator Color | - |
| Mating Cycles | 100 |
| Base Product Number | 65801 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 65801-030 | 65801-030LF | 65801-031 | 65801-031LF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS non-compliant | RoHS Compliant |
| Description | CLINCHER RECEPTACLE ASSY TIN | CONN FFC FPC RCPT 30POS 2.54MM | CLINCHER RECEPTACLE ASSY TIN | CONN FFC FPC RCPT 31POS 2.54MM |
| Series | Clincher™ | Clincher™ | Clincher™ | Clincher™ |
| Packaging | Tray | Tray | Tray | Tray |
