6915-1002-030
lmages are for reference only.6915-1002-030
SENSOR ROTARY 340DEG WIRE LEADS
DatasheetRing, Wire Leads
98,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Rotary Position Exposed Element - Rotary Wire Leads
6915-1002-030
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | 6915 |
| Packaging | Bag |
| RoHS Status | Not applicable |
| For Measuring | Rotary Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
| Linear Range | - |
| Output | Resistive |
| Output Signal | Clockwise Increase |
| Actuator Type | Exposed Element - Rotary |
| Linearity | ±0.5% |
| Resistance | 5 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | - |
| Mounting Type | Custom |
| Termination Style | Wire Leads |
| Operating Temperature | -65°C ~ 125°C |
| Package / Case | Ring, Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | 6915 |
| Product Attribute |  |
 |
 |
 |

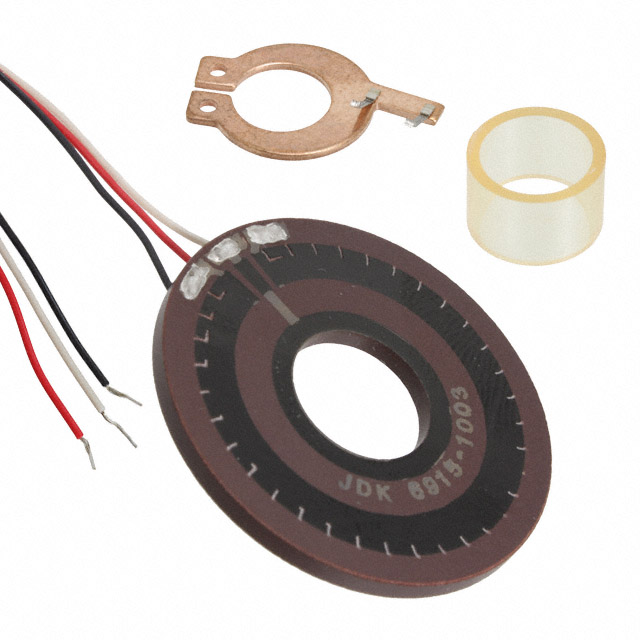

| Part Number | 6915-1003-030 | MLX90513GGO-CAA-100-SP | HP-L-1000-203-3%-RLD | 6126V3A75L.5CW |
| Manufacturer | TE Connectivity Measurement Specialties | Melexis Technologies NV | Spectra Symbol | TT Electronics/BI |
| RoHS Status | Not applicable | ROHS3 Compliant | ||
| Description | POT ELEMENT/WIPER 10K OHM | INDUCTIVE POSITION SENSOR ASSP W | SENSOR LINEAR 1000MM CONNECTOR | NON-CONTACTING ROTARY SENSOR |
| Series | 6915 | - | HotPot | * |
| Packaging | Bag | Bulk | Box | Bulk |
