6SVP120MV
lmages are for reference only.6SVP120MV
CAP ALUM POLY 120UF 20% 6.3V SMD
DatasheetRadial, Can - SMD
95,165 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 17mOhm 2000 Hrs @ 105°C
6SVP120MV
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SVP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 17mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 139 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.78 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | 6SVP |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

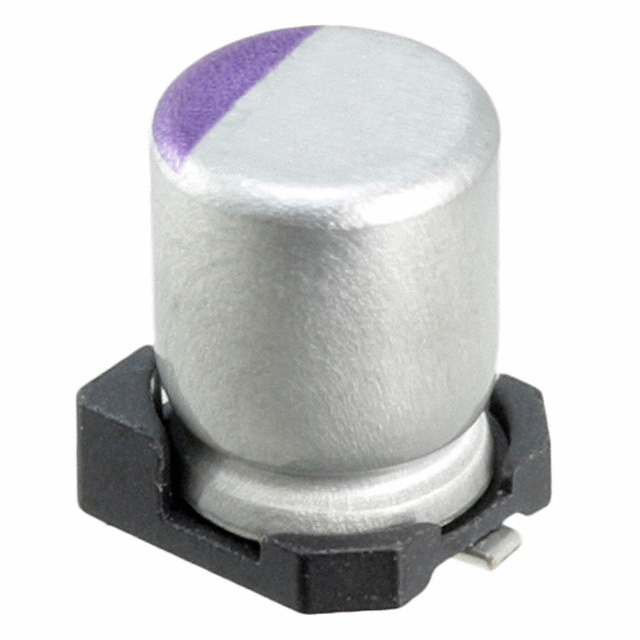

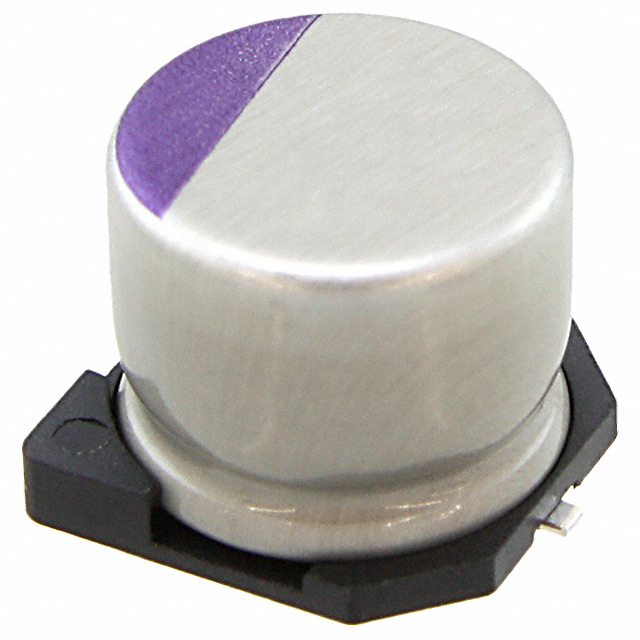

| Part Number | 6SVP100M | 6SVP220M | 6SVP220MX | 6SVP22M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 100UF 20% 6.3V SMD | CAP ALUM POLY 220UF 20% 6.3V SMD | CAP ALUM POLY 220UF 20% 6.3V SMD | CAP ALUM POLY 22UF 20% 6.3V SMD |
| Series | OS-CON™, SVP | OS-CON™, SVP | OS-CON™, SVP | OS-CON™, SVP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
