7-1415541-0
lmages are for reference only.7-1415541-0
RELAY GEN PURPOSE 4PDT 6A 24V
Datasheet-
39,316 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
7-1415541-0
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 1440VA |
| Coil Current | 30.8 mA |
| Coil Type | Non Latching |
| Features | Diode, Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 18 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 777 Ohms |
| Base Product Number | PT570 |
| Product Attribute |  |
|
|
 |

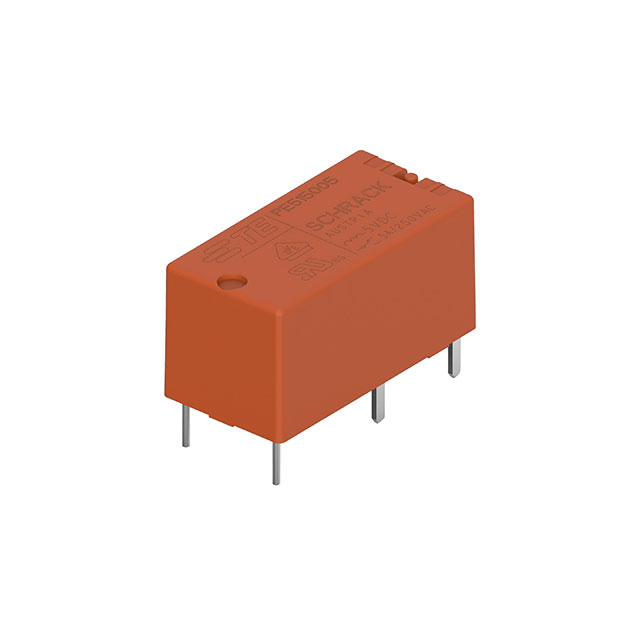

| Part Number | 7-1415541-1 | 7-1415541-2 | 7-1415541-7 | 7-1415542-8 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 4PDT 6A | PT570MB0 | PT570NC0 | RELAY GEN PURPOSE SPDT 5A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Tube | Bulk |
