7011X1/17

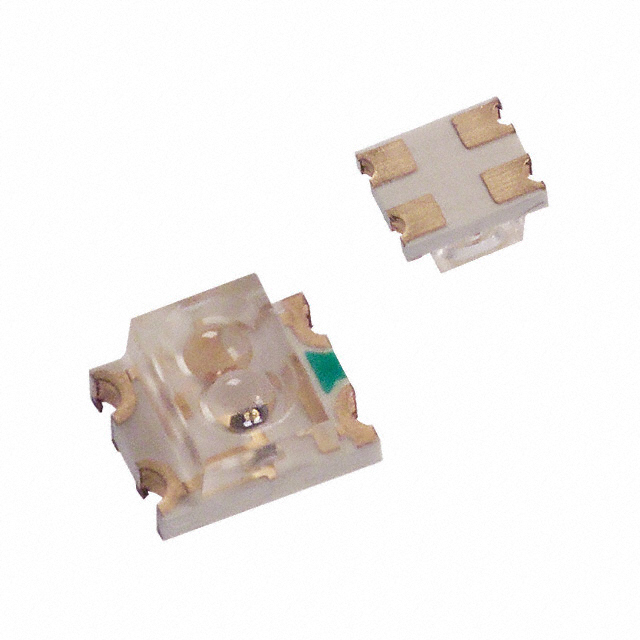

lmages are for reference only.7011X1/17
LED RED/YLW CLEAR SMD
Datasheet4-SMD, No Lead
45,350 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Yellow LED Indication - Discrete 1.75V Red, 2.2V Yellow 4-SMD, No Lead
7011X1/17
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | 7011X |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 11.5mcd Red, 4.5mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 1.75V Red, 2.2V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 660nm Red, 580nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.50mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | 7011X1/5 | 7011X1/7 | 7010X1 | 7010X11 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR SMD | LED RED/YLW CLEAR SMD | LED RED CLEAR 1206 SMD | LED RED CLEAR 1206 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
