7018X1/5
lmages are for reference only.7018X1/5
LED GREEN/RED DIFFUSED 0606 SMD
Datasheet0606 (1616 Metric)
46,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red LED Indication - Discrete 2.1V Green, 2.1V Red 0606 (1616 Metric)
7018X1/5
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 6.4mcd Green, 6.4mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.70mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

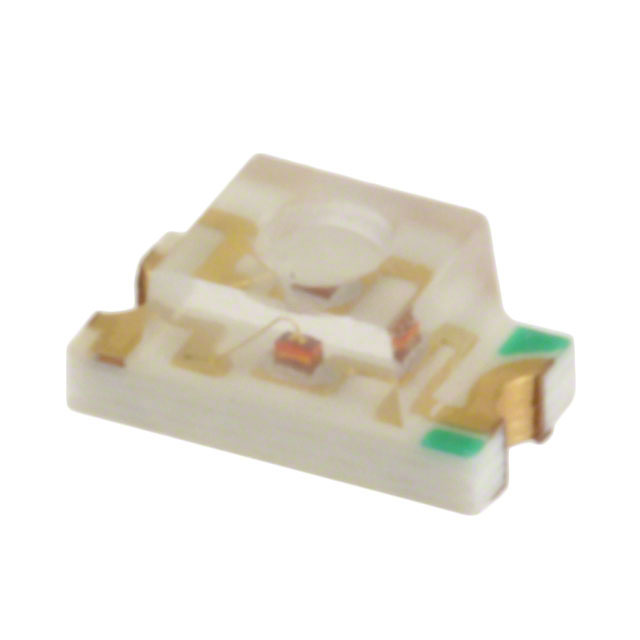

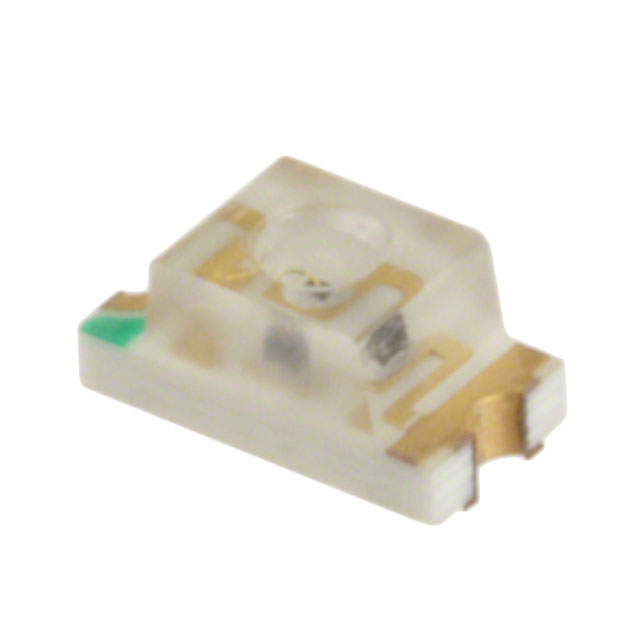

| Part Number | 7018X5/7 | 7010X1 | 7010X11 | 7010X3 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GRN/YLW DIFFUSED 0606 SMD | LED RED CLEAR 1206 SMD | LED RED CLEAR 1206 SMD | LED ORANGE CLEAR 1206 SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
