7109-RC
Manufacturer
Bourns Inc.Description
CMC 2.55MH 2A 2LN TH
Datasheet
DatasheetPackage
Vertical, No Base, 4 PC Pin
In Stock
76,311 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
7109-RC
7109-RC
lmages are for reference only.Payment Methods
Delivery Services

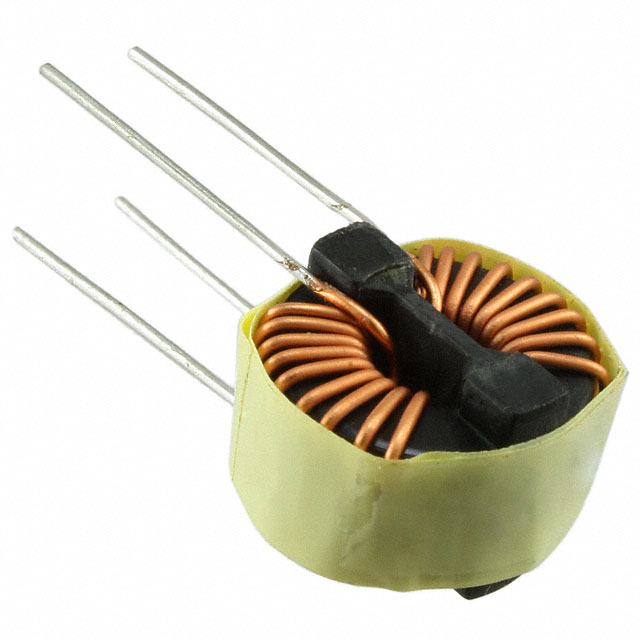

2.55 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 75mOhm
Quick Inquiry
7109-RC
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Bourns Inc. |
| Series | 7100 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 2.55 mH @ 1 kHz |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 75mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.700" Dia x 0.550" W (17.78mm x 13.97mm) |
| Height (Max) | 0.700" (17.78mm) |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Base Product Number | 7109 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
