714-43-126-31-018000

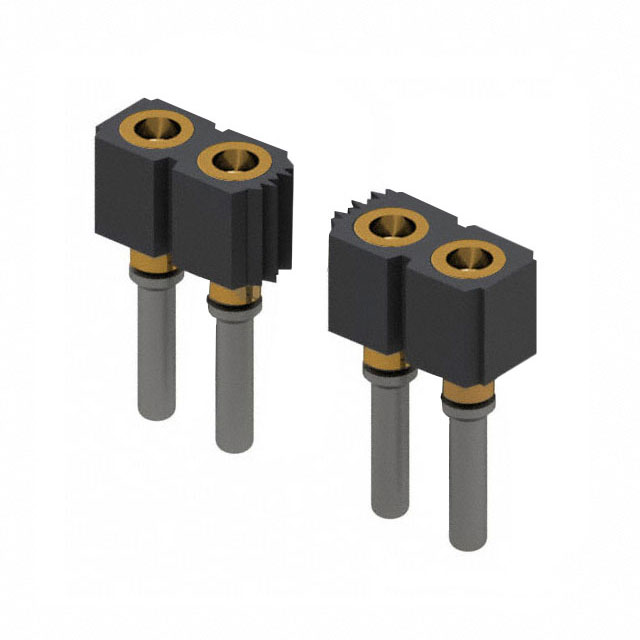

lmages are for reference only.714-43-126-31-018000
CONN SOCKET SIP 26POS GOLD
Datasheet-
41,262 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
26 (1 x 26) Pos SIP Socket Gold Through Hole
714-43-126-31-018000
| Category | Connectors, Interconnects - Sockets for ICs-Transistors - IC Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 714 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | SIP |
| Number of Positions or Pins (Grid) | 26 (1 x 26) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Carrier |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Material - Post | Brass Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 125°C |
| Termination Post Length | 0.170" (4.32mm) |
| Material Flammability Rating | - |
| Current Rating (Amps) | 3 A |
| Contact Resistance | - |
| Base Product Number | 714-43 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 714-43-101-31-018000 | 714-43-102-31-018000 | 714-43-103-31-018000 | 714-43-104-31-018000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN SOCKET SIP 1POS GOLD | CONN SOCKET SIP 2POS GOLD | CONN SOCKET SIP 3POS GOLD | CONN SOCKET SIP 4POS GOLD |
| Series | 714 | 714 | 714 | 714 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
