715P1535800LA3
lmages are for reference only.715P1535800LA3
CAP FILM 0.015UF 5% 1.8KVDC RAD
DatasheetRadial
81,799 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.015 µF Film Capacitor 800V 1800V (1.8kV) Polypropylene (PP), Metallized Radial
715P1535800LA3
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | Orange Drop® 715P |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | 1800V (1.8kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.669" Dia x 1.122" L (17.00mm x 28.50mm) |
| Height - Seated (Max) | 0.969" (24.60mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

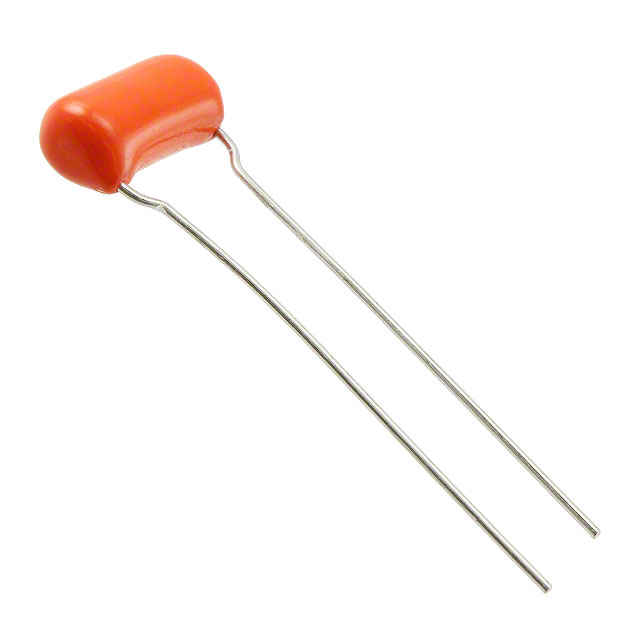

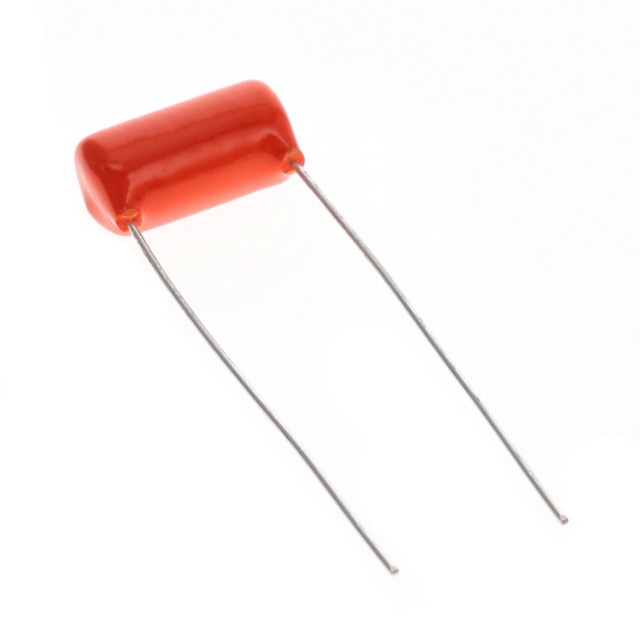

| Part Number | 715P153512LD3 | 715P153516MD3 | 715P15352JD3 | 715P15354JD3 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.015UF 5% 1.2KVDC RAD | CAP FILM 0.015UF 5% 1.6KVDC RAD | CAP FILM 0.015UF 5% 200VDC RAD | CAP FILM 0.015UF 5% 400VDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
