717P8213800L-238
lmages are for reference only.717P8213800L-238
CAP FILM 820PF 3% 1.8KVDC RADIAL
DatasheetRadial
15,650 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 pF Film Capacitor 800V 1800V (1.8kV) Polypropylene (PP), Metallized Radial
717P8213800L-238
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | Orange Drop® 717P |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 820 pF |
| Tolerance | ±3% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | 1800V (1.8kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | - |
| Height - Seated (Max) | - |
| Termination | PC Pins |
| Lead Spacing | - |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute | |
|
|
 |

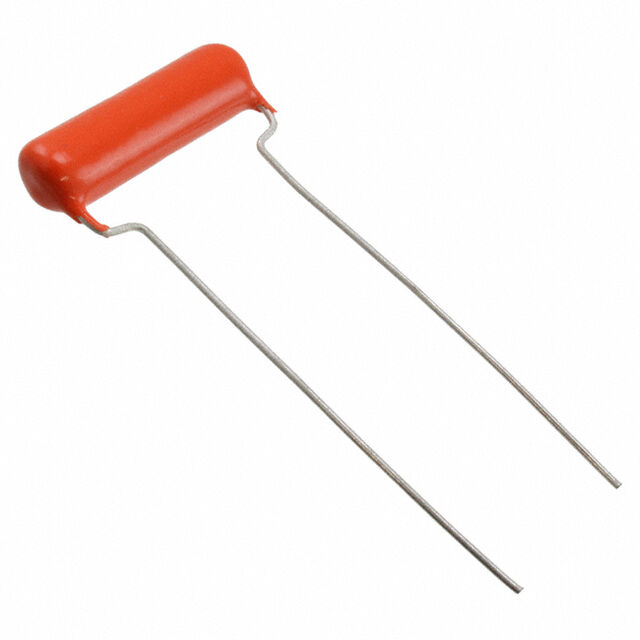

| Part Number | 717P8213800L-238 | 704M33592 | 715P1021800LA3 | 715P102516LD3 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 820PF 3% 1.8KVDC RADIAL | CAP FILM 3.3UF 10% 200VDC AXIAL | CAP FILM 1000PF 1% 1.8KVDC RAD | CAP FILM 1000PF 5% 1.6KVDC RAD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
