Product CatalogPart Number
731-639
Manufacturer
WAGO CorporationDescription
1-CONDUCTOR MALE CONNECTOR; 2.5
Datasheet
DatasheetPackage
-
In Stock
64,604 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
731-639
731-639

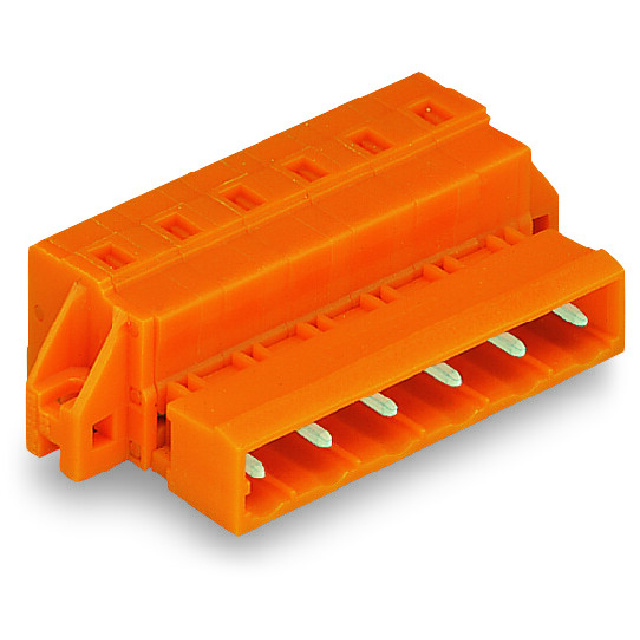

lmages are for reference only.Payment Methods
Delivery Services
9 Position Terminal Block Plug, Male Pins 0.300" (7.62mm) 180° Free Hanging (In-Line)
Quick Inquiry
731-639
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WAGO Corporation |
| Series | MCSMIDI Classic |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Male Pins |
| Number of Positions | 9 |
| Positions Per Level | 9 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-2.5mm² |
| Color | Orange |
| Operating Temperature | -60°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | 8-9mm |
| Contact Material | Electrolytic Copper |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | - |
| Insulation Height | 0.563" (14.30mm) |
| Current - UL | 15 A |
| Voltage - UL | 600 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 731-632 | 731-632/018-000 | 731-632/019-000 | 731-632/114-000 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1-CONDUCTOR MALE CONNECTOR; 2.5 | 1-CONDUCTOR MALE CONNECTOR; SNAP | 1-CONDUCTOR MALE CONNECTOR; CLAM | 1-CONDUCTOR MALE CONNECTOR; SNAP |
| Series | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic | MCSMIDI Classic |
| Packaging | Box | Box | Box | Box |
