743C043473JP
lmages are for reference only.743C043473JP
RES ARRAY 2 RES 47K OHM 1008
Datasheet1008, Concave, Long Side Terminals
54,127 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47k Ohm ±5% 100mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 1008, Concave, Long Side Terminals
743C043473JP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 743 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 47k |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 4 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008, Concave, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.100" L x 0.079" W (2.54mm x 2.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

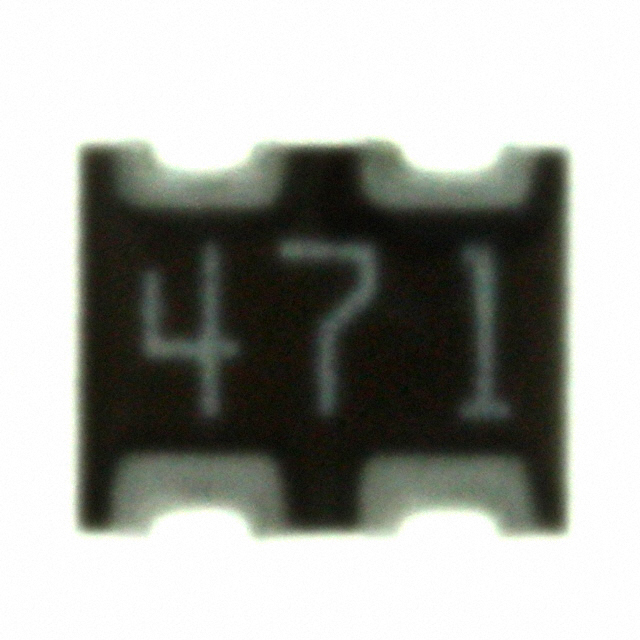

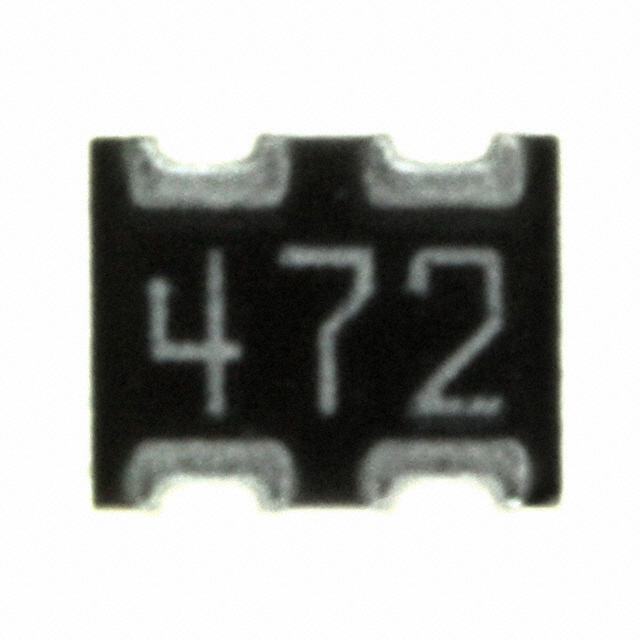

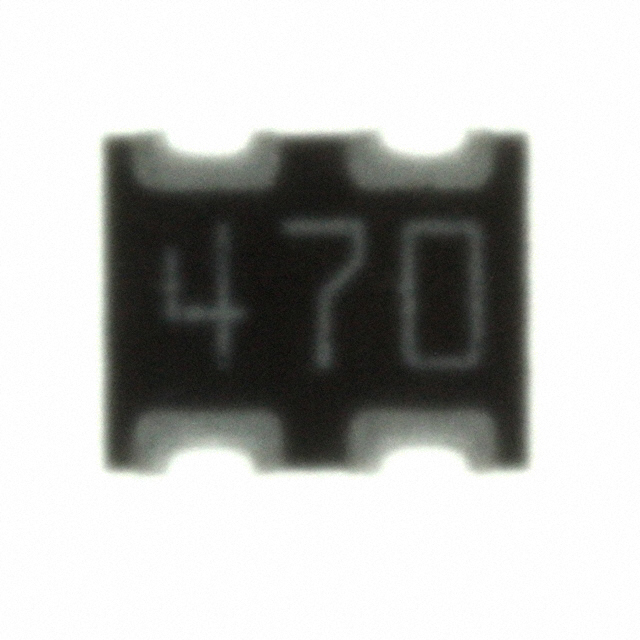

| Part Number | 743C043470JP | 743C043471JP | 743C043472JP | 743C043474JP |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 2 RES 47 OHM 1008 | RES ARRAY 2 RES 470 OHM 1008 | RES ARRAY 2 RES 4.7K OHM 1008 | RES ARRAY 2 RES 470K OHM 1008 |
| Series | 743 | 743 | 743 | 743 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
