743C083000XP
lmages are for reference only.743C083000XP
RES ARRAY 4 RES ZERO OHM 2008
Datasheet2008, Concave, Long Side Terminals
22,459 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.0 Ohm Jumper 100mW Power Per Element Isolated 4 Resistor Network/Array 2008, Concave, Long Side Terminals
743C083000XP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 743 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 0.0 |
| Tolerance | Jumper |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 100mW |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 2008, Concave, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.200" L x 0.079" W (5.08mm x 2.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | 743C0831002FP | 743C083100JP | 743C083100JTR | 743C083101JP |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

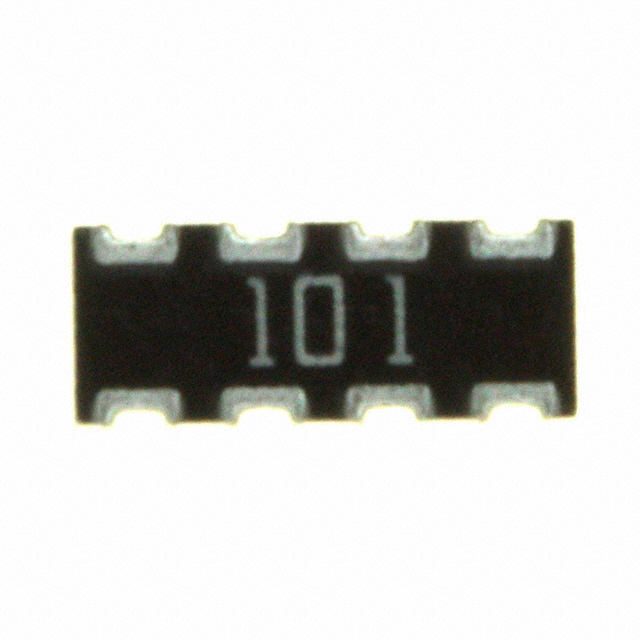

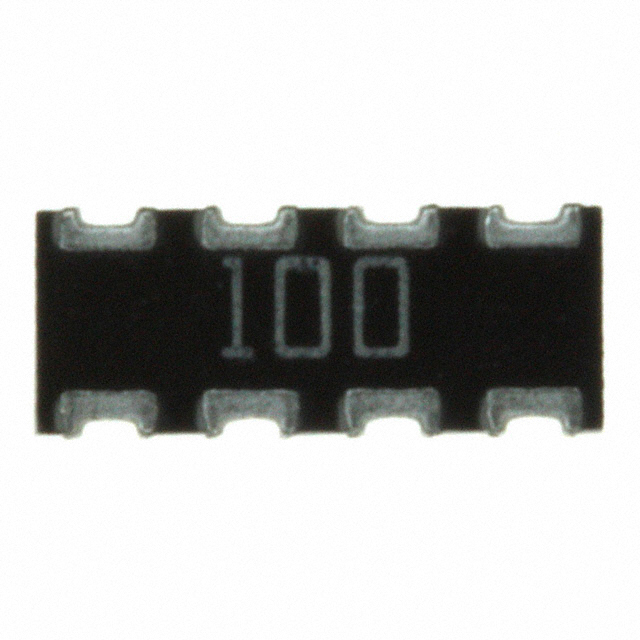

| Description | RES ARRAY 4 RES 10K OHM 2008 | RES ARRAY 4 RES 10 OHM 2008 | RES ARRAY 4 RES 10 OHM 2008 | RES ARRAY 4 RES 100 OHM 2008 |
| Series | 743 | 743 | 743 | 743 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
