Product CatalogPart Number
744052120
Manufacturer
Würth ElektronikDescription
FIXED IND 12UH 1A 160 MOHM SMD
Datasheet
DatasheetPackage
2323 (5858 Metric)
In Stock
92,982 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
744052120
744052120
lmages are for reference only.Payment Methods
Delivery Services
12 µH Shielded Drum Core, Wirewound Inductor 1 A 160mOhm Max 2323 (5858 Metric)
Quick Inquiry
744052120
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TPC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2323 (5858 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 744052007 | 744052101 | 744052220 | 744052680 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 7.5UH 1.35A 90MOHM SMD | FIXED IND 100UH 350MA 1.1OHM SMD | FIXED IND 22UH 800MA 280MOHM SMD | FIXED IND 68UH 640MA 850MOHM SMD |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
74405020010
Würth Elektronik
74405020010
Würth Elektronik
74405020047
Würth Elektronik
74405020100
Würth Elektronik
744050240047
Würth Elektronik
74405031010
Würth Elektronik
74405031010
Würth Elektronik
74405031015
Würth Elektronik

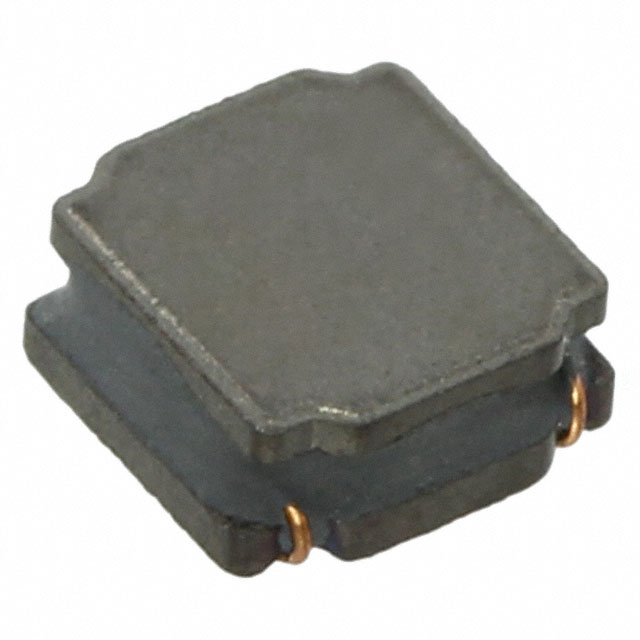

74405031022
Würth Elektronik
74405031100
Würth Elektronik
744050420047
Würth Elektronik
74405042015
Würth Elektronik
744052007
Würth Elektronik

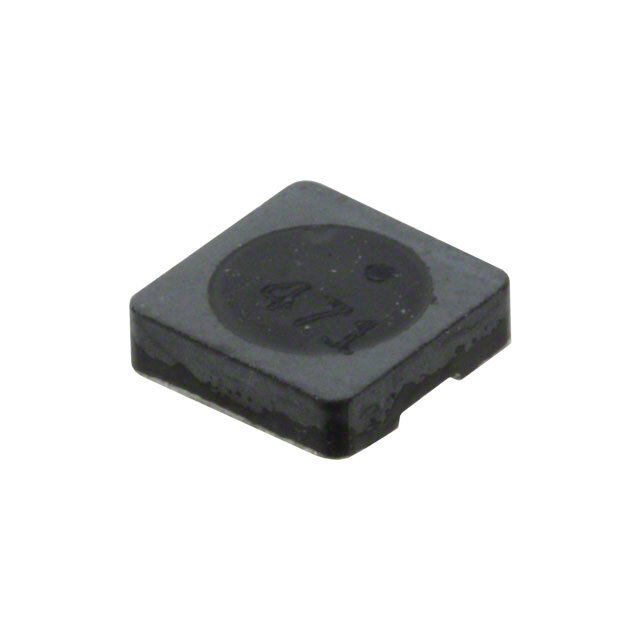

744052101
Würth Elektronik
744052220
Würth Elektronik
744052680
Würth Elektronik

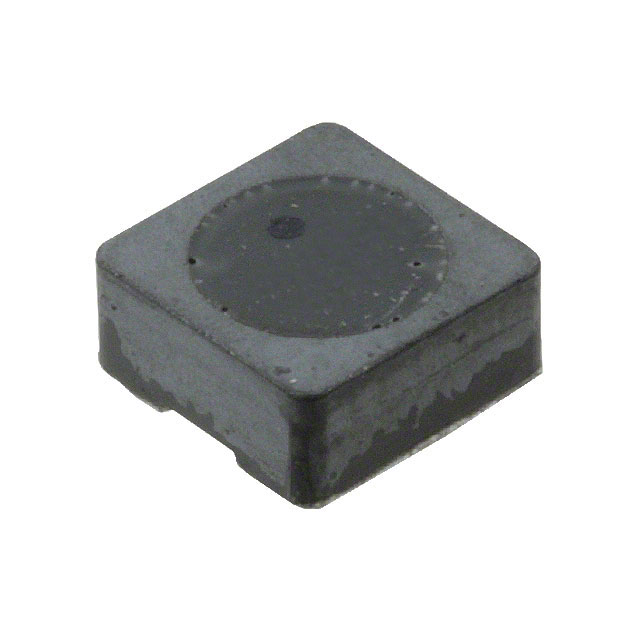

744053002
