744118
lmages are for reference only.744118
FIXED IND 600UH 2.2A 330 MOHM TH
DatasheetRadial, Vertical (Open)
75,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600 µH Unshielded Toroidal Inductor 2.2 A 330mOhm Max Radial, Vertical (Open)
744118
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-SI |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 600 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 330mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

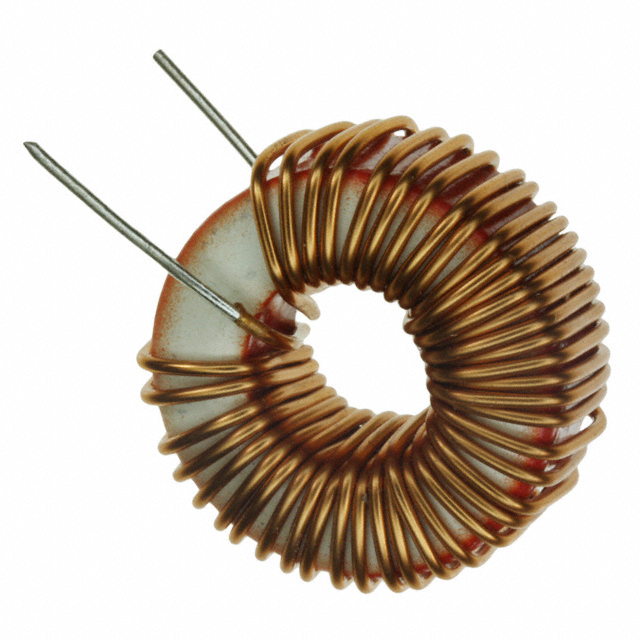

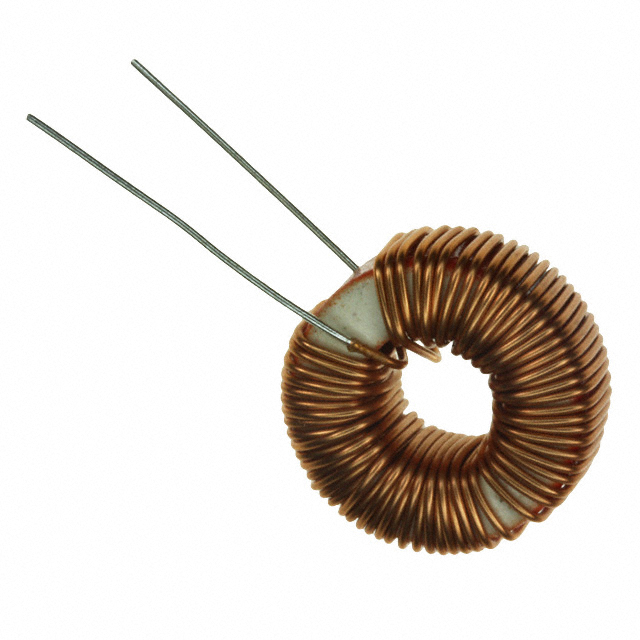

| Part Number | 744114 | 744116 | 744117 | 744119 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 127UH 2.3A 120 MOHM TH | FIXED IND 345UH 2.1A 200 MOHM TH | FIXED IND 390UH 2A 250 MOHM TH | FIXED IND 890UH 2A 400 MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Bulk | Bulk | Bulk | Bulk |
