744136
lmages are for reference only.744136
FIXED IND 346UH 3.8A 140 MOHM TH
DatasheetRadial, Vertical (Open)
62,960 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
346 µH Unshielded Toroidal Inductor 3.8 A 140mOhm Max Radial, Vertical (Open)
744136
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-SI |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 346 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

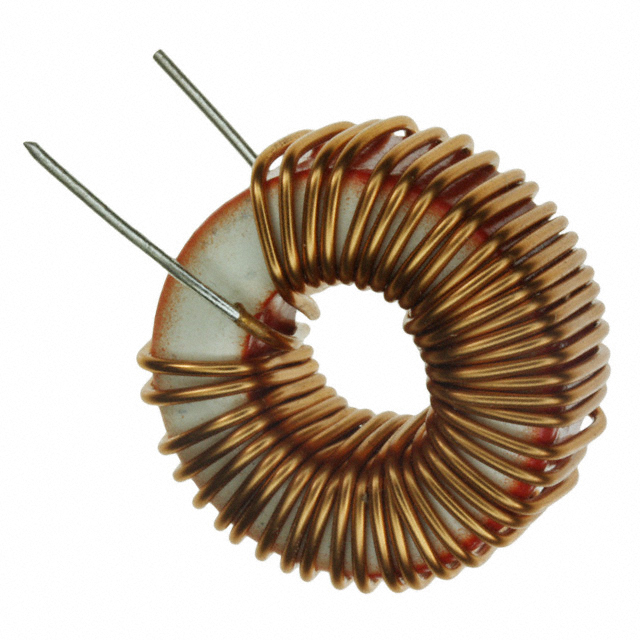

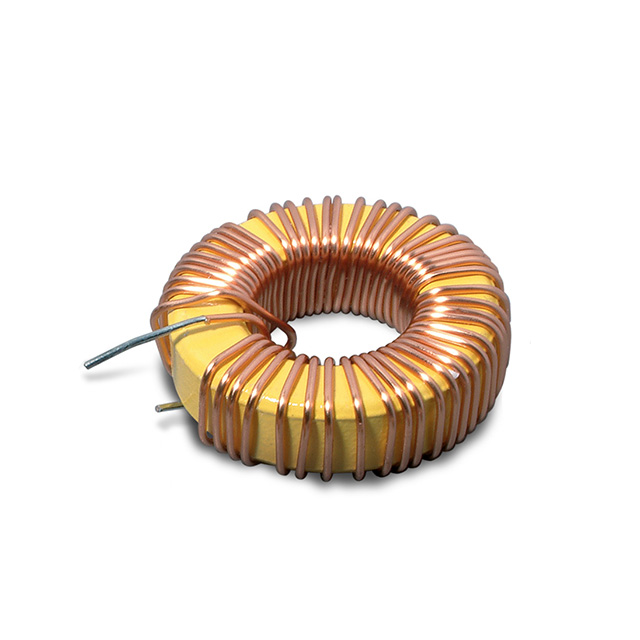

| Part Number | 744132 | 744135 | 744137 | 744138 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 49UH 5.8A 50 MOHM TH | FIXED IND 157UH 5.1A 63 MOHM TH | FIXED IND 630UH 3.1A 175 MOHM TH | FIXED IND 727UH 3.5A 240 MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Bulk | Bulk | Bulk | Bulk |
