Product CatalogPart Number
7443763521022
Manufacturer
Würth ElektronikDescription
FIXED IND 2.2UH 75A 0.4 MOHM TH
Datasheet
DatasheetPackage
Nonstandard
In Stock
49,584 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
7443763521022
7443763521022
lmages are for reference only.Payment Methods
Delivery Services
2.2 µH Shielded Drum Core, Wirewound Inductor 75 A 0.4mOhm Max Nonstandard
Quick Inquiry
7443763521022
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-HCFT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 75 A |
| Current - Saturation (Isat) | 120A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.417" L x 0.846" W (36.00mm x 21.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | 7443763521015 | 7443763540068 | 7443763540220 | 7443763540220 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

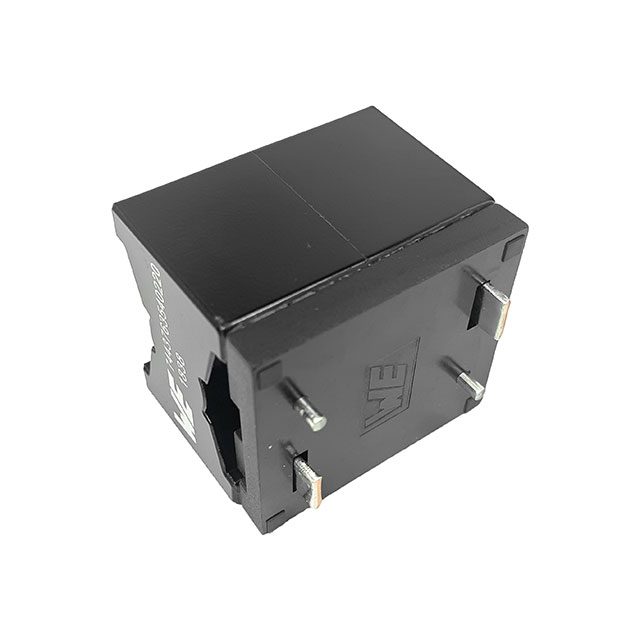

| Description | FIXED IND 1.5UH 75A 0.4 MOHM TH | FIXED IND 6.8UH 56.7A 1.2MOHM TH | FIXED IND 22UH 40.6A 3.2 MOHM TH | FIXED IND 22UH 40.6A 3.2 MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
