7447221331
lmages are for reference only.7447221331
FIXED IND 330UH 1.35A 320MOHM TH
DatasheetRadial, Vertical Cylinder, 4 Leads
59,300 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Drum Core, Wirewound Inductor 1.35 A 320mOhm Max Radial, Vertical Cylinder, 4 Leads
7447221331
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TI |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.35 A |
| Current - Saturation (Isat) | 1.55A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 320mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

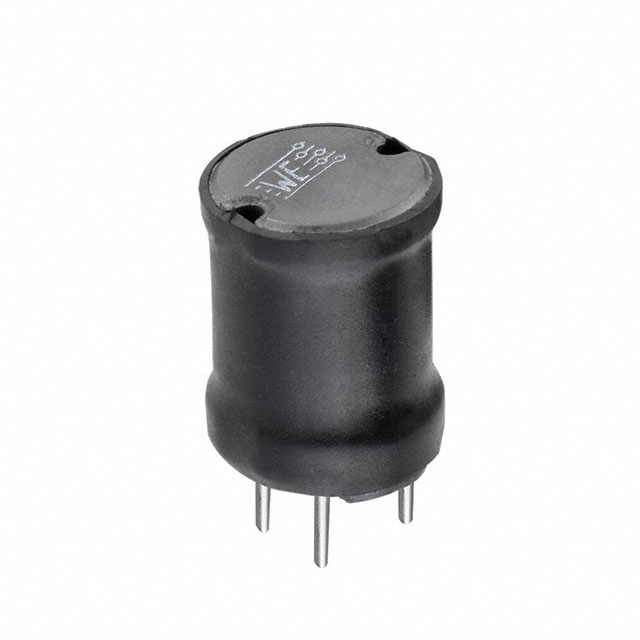

| Part Number | 7447221332 | 7447221102 | 7447221103 | 7447221221 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.3MH 400MA 3.2 OHM TH | FIXED IND 1MH 750MA 980 MOHM TH | FIXED IND 10MH 230MA 9.7 OHM TH | FIXED IND 220UH 1.65A 220MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
