7447462010
lmages are for reference only.7447462010
FIXED IND 1UH 8.5A 15 MOHM TH
DatasheetRadial, Vertical Cylinder
53,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Drum Core, Wirewound Inductor 8.5 A 15mOhm Max Radial, Vertical Cylinder
7447462010
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TI |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 140MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 7447462022 | 7447462033 | 7447462047 | 7447462068 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

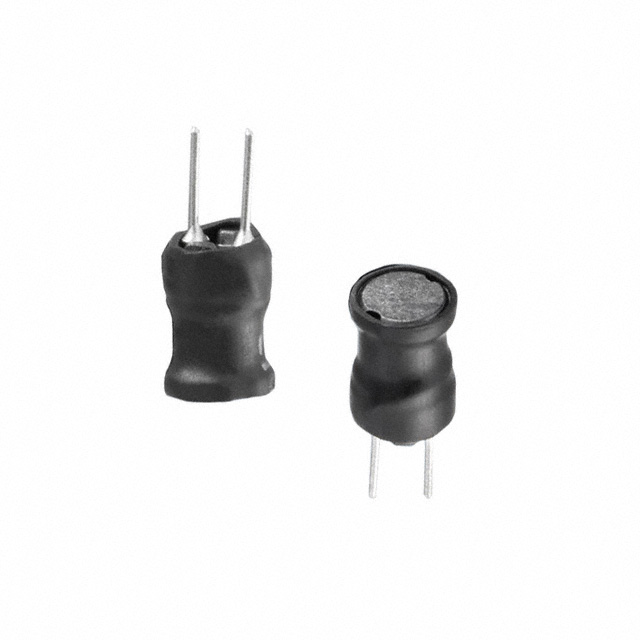

| Description | FIXED IND 2.2UH 6.3A 20 MOHM TH | FIXED IND 3.3UH 4.7A 25 MOHM TH | FIXED IND 4.7UH 4.2A 30 MOHM TH | FIXED IND 6.8UH 3.3A 34 MOHM TH |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Bulk | Bulk | Bulk | Bulk |
