Product CatalogPart Number
74476620
Manufacturer
Würth ElektronikDescription
FIXED IND 100UH 110MA 8 OHM SMD
Datasheet
DatasheetPackage
1812 (4532 Metric)
In Stock
70,043 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
74476620
74476620
lmages are for reference only.Payment Methods
Delivery Services
100 µH Unshielded Drum Core, Wirewound Inductor 110 mA 8Ohm Max 1812 (4532 Metric)
Quick Inquiry
74476620
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-GF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 110 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8Ohm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 8.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 4532 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.142" (3.60mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

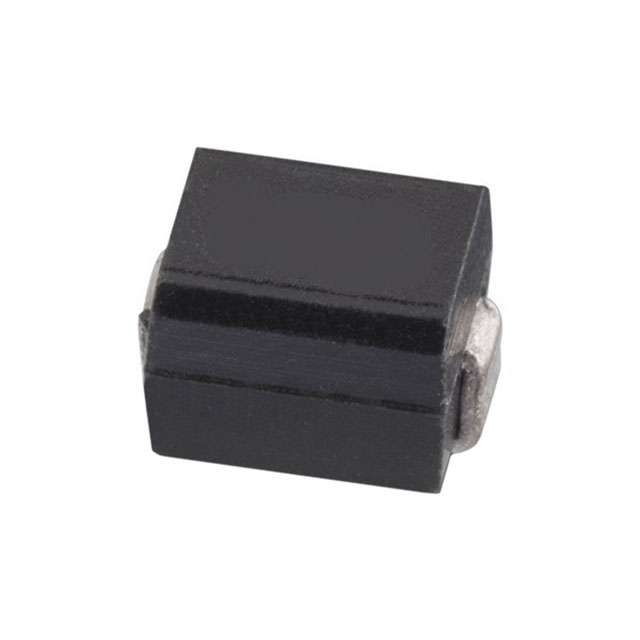

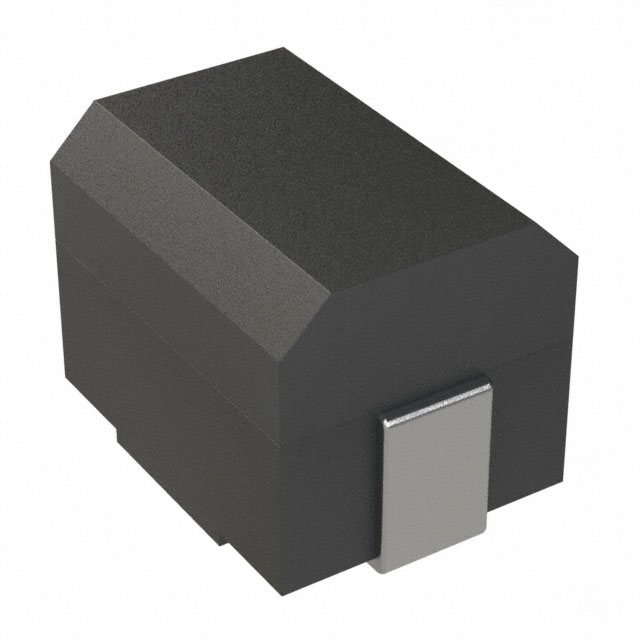

| Part Number | 744766215 | 744766218 | 744766220 | 744766233 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 150UH 105MA 9 OHM SMD | FIXED IND 180UH 100MA 9.5OHM SMD | FIXED IND 220UH 100MA 10 OHM SMD | FIXED IND 330UH 85MA 14 OHM SMD |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
