744766910

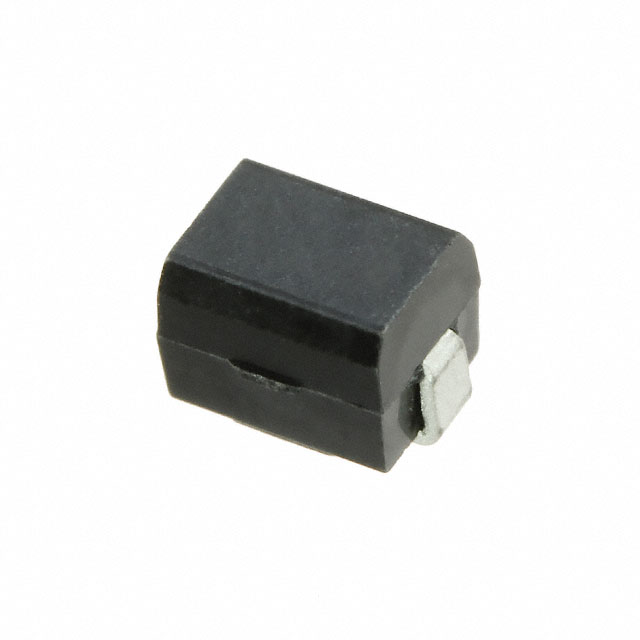

lmages are for reference only.744766910
FIXED IND 10UH 825MA 420MOHM SMD
Datasheet1812 (4532 Metric)
91,484 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 825 mA 500mOhm Max 1812 (4532 Metric)
744766910
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-GFH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 825 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 25 @ 2.52MHz |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 4532 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 7447669112 | 7447669115 | 7447669118 | 7447669133 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 12UH 810MA 465MOHM SMD | FIXED IND 15UH 800MA 535MOHM SMD | FIXED IND 18UH 700MA 680MOHM SMD | FIXED IND 33UH 525MA 1.06OHM SMD |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
