744772010

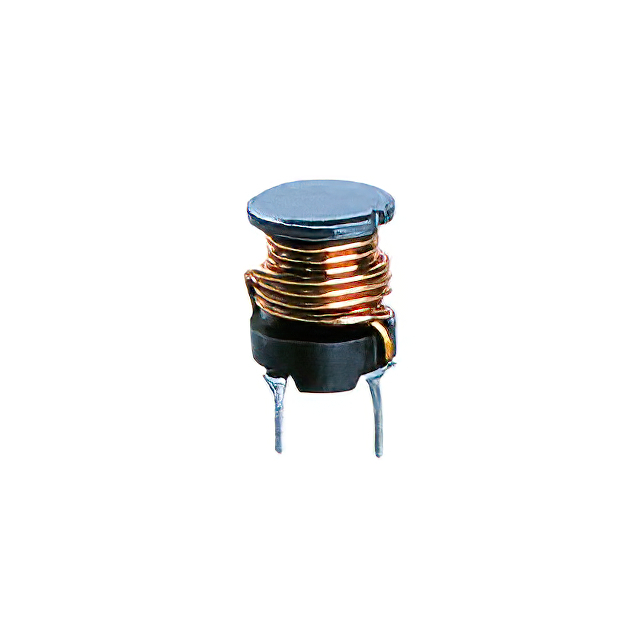

lmages are for reference only.744772010
FIXED IND 1UH 7.5A 10 MOHM TH
DatasheetRadial, Vertical Cylinder (Open)
74,120 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Drum Core, Wirewound Inductor 7.5 A 10mOhm Max Radial, Vertical Cylinder (Open)
744772010
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TI |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.5 A |
| Current - Saturation (Isat) | 10A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 160MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 7447720101 | 7447720102 | 7447720103 | 7447720121 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 1.3A 220 MOHM TH | WE-TI RADIAL LEADED WIRE WOUND I | FIXED IND 10MH 130MA 24 OHM TH | WE-TI RADIAL LEADED WIRE WOUND I |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
