744784101
lmages are for reference only.744784101
FIXED IND 100NH 100MA 2.5OHM SMD
Datasheet0402 (1005 Metric)
86,271 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 nH Unshielded Multilayer Inductor 100 mA 2.5Ohm Max 0402 (1005 Metric)
744784101
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-MK |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.5Ohm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 850MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 120°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

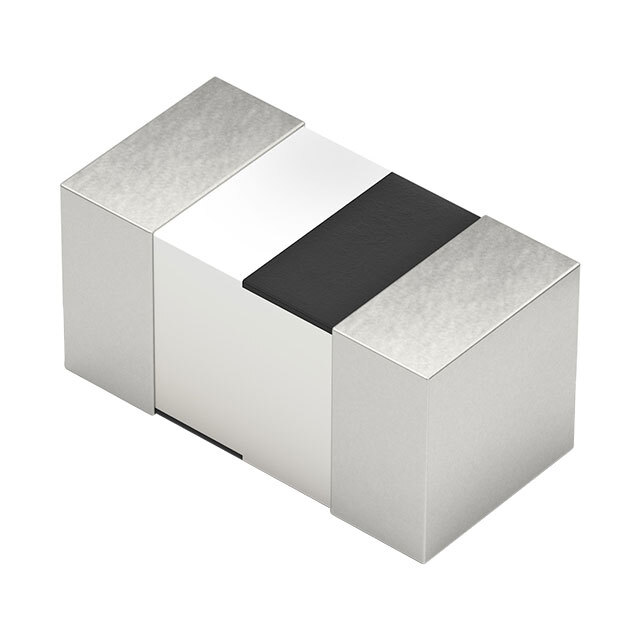

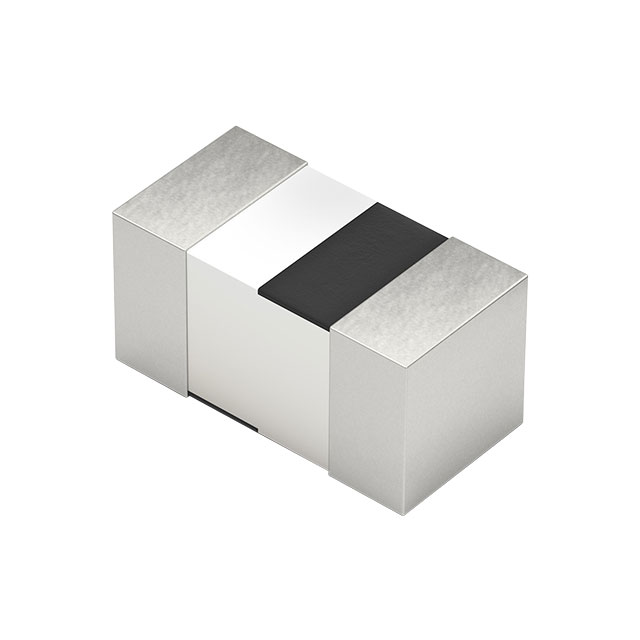

| Part Number | 74478410 | 7447840075 | 74478401 | 74478401 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10NH 250MA 450MOHM SMD | FIXED IND 7.5NH 300MA 310MOHM SM | FIXED IND 1NH 300MA 120 MOHM SMD | FIXED IND 1NH 300MA 120 MOHM SMD |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
