744C083181JTR

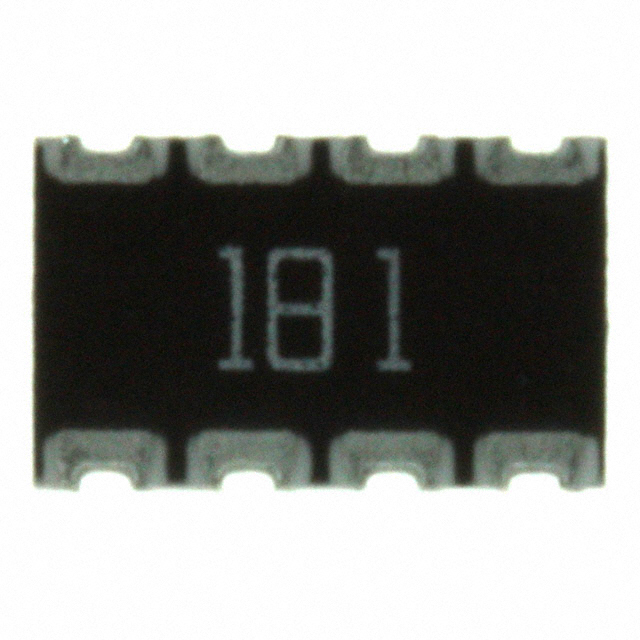

lmages are for reference only.744C083181JTR
RES ARRAY 4 RES 180 OHM 2012
Datasheet2012, Concave, Long Side Terminals
36,437 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
180 Ohm ±5% 125mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2012, Concave, Long Side Terminals
744C083181JTR
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 744 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 180 |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 125mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 2012, Concave, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.200" L x 0.126" W (5.08mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | 744C083 |
| Product Attribute |  |
 |
|
 |

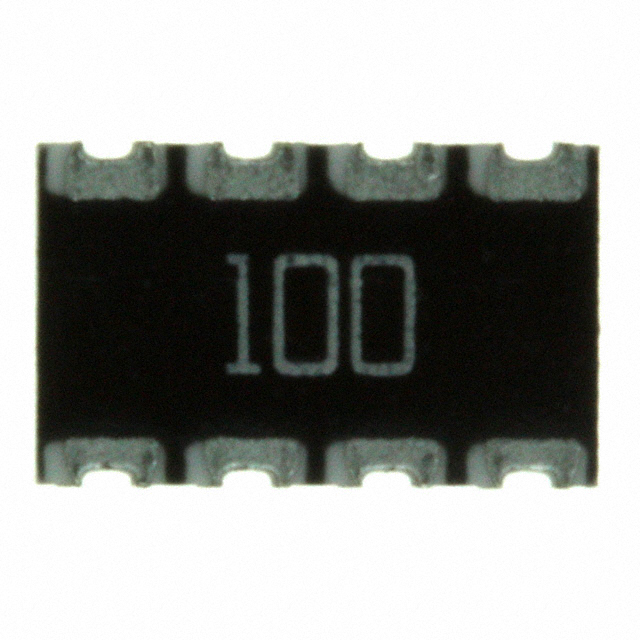

| Part Number | 744C083181GP | 744C083181JP | 744C083000XP | 744C083100JP |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 2012 | RES ARRAY 4 RES 180 OHM 2012 | RES ARRAY 4 RES ZERO OHM 2012 | RES ARRAY 4 RES 10 OHM 2012 |
| Series | 744 | 744 | 744 | 744 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
