744C083392JP
lmages are for reference only.744C083392JP
RES ARRAY 4 RES 3.9K OHM 2012
Datasheet2012, Concave, Long Side Terminals
25,145 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9k Ohm ±5% 125mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2012, Concave, Long Side Terminals
744C083392JP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 744 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 3.9k |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 125mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 2012, Concave, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.200" L x 0.126" W (5.08mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | 744C083 |
| Product Attribute |  |
 |
 |
 |

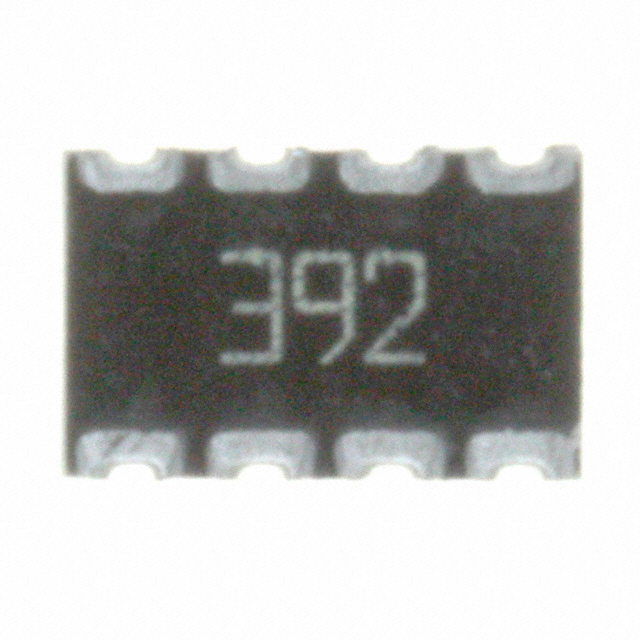

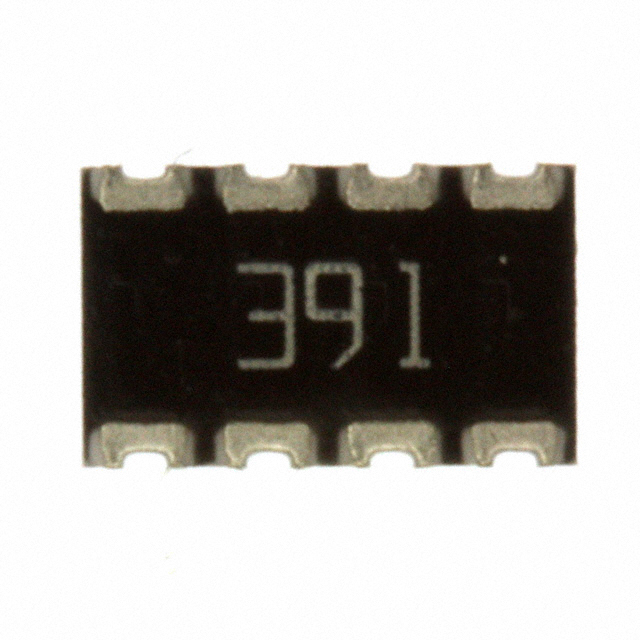

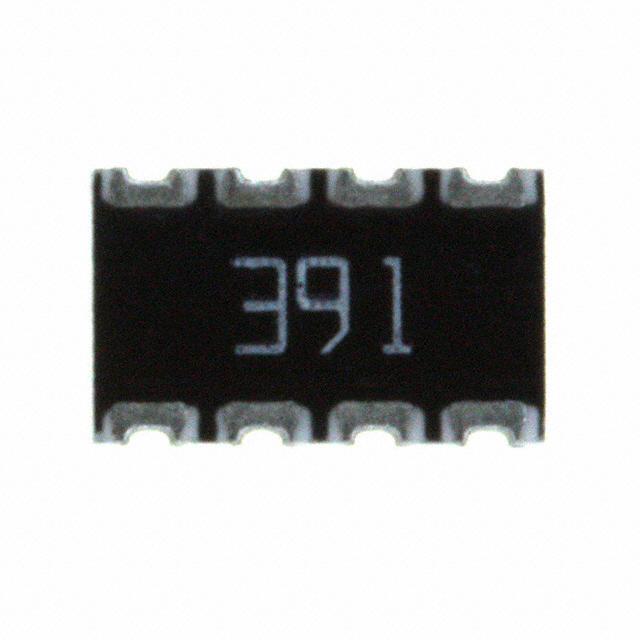

| Part Number | 744C083392JTR | 744C083390JP | 744C083391JP | 744C083391JTR |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 3.9K OHM 2012 | RES ARRAY 4 RES 39 OHM 2012 | RES ARRAY 4 RES 390 OHM 2012 | RES ARRAY 4 RES 390 OHM 2012 |
| Series | 744 | 744 | 744 | 744 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
