746X101223JP

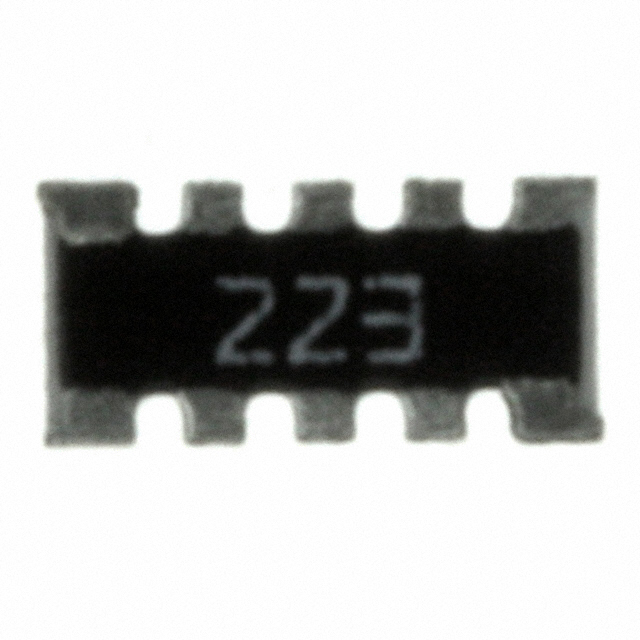

lmages are for reference only.746X101223JP
RES ARRAY 8 RES 22K OHM 1206
Datasheet1206 (3216 Metric), Convex, Long Side Terminals
19,374 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22k Ohm ±5% 63mW Power Per Element Bussed 8 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
746X101223JP
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | CTS Resistor Products |
| Series | 746 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Bussed |
| Resistance (Ohms) | 22k |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 10 |
| Power Per Element | 63mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | DDR SDRAM, DRAM, MDDR |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | 746X101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 746X101223J | 746X101221J | 746X101221JP | 746X101222J |
| Manufacturer | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products | CTS Resistor Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

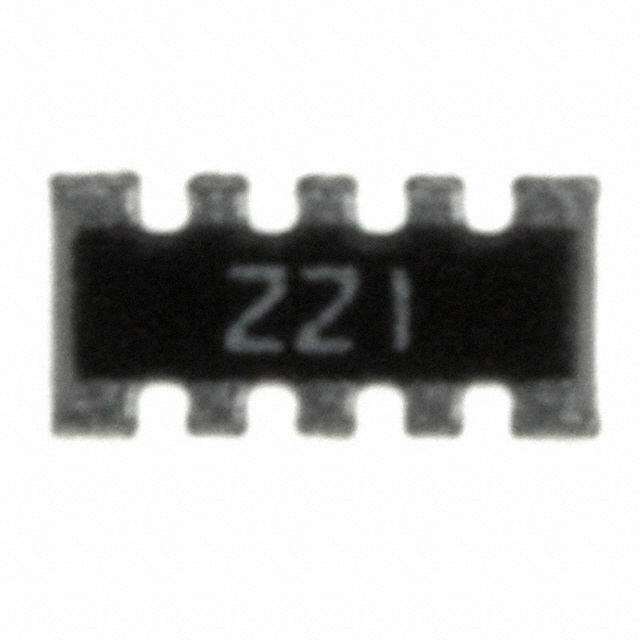

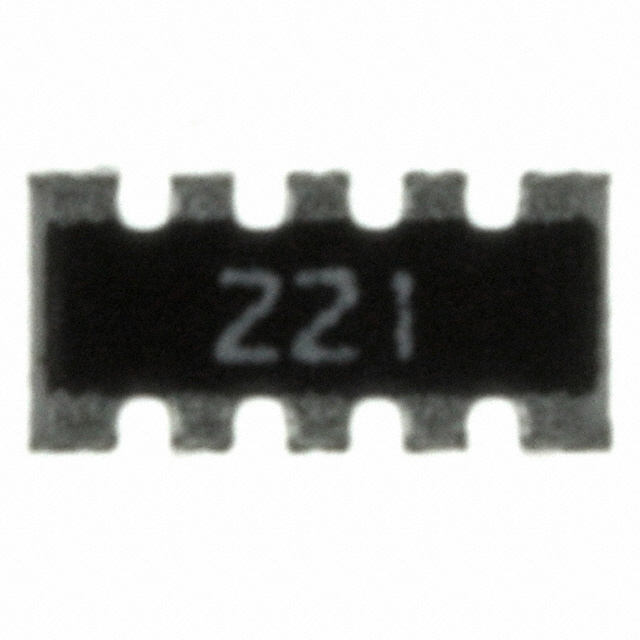

| Description | RES ARRAY 8 RES 22K OHM 1206 | RES ARRAY 8 RES 220 OHM 1206 | RES ARRAY 8 RES 220 OHM 1206 | RES ARRAY 8 RES 2.2K OHM 1206 |
| Series | 746 | 746 | 746 | 746 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
