74ABT16841ADL,512

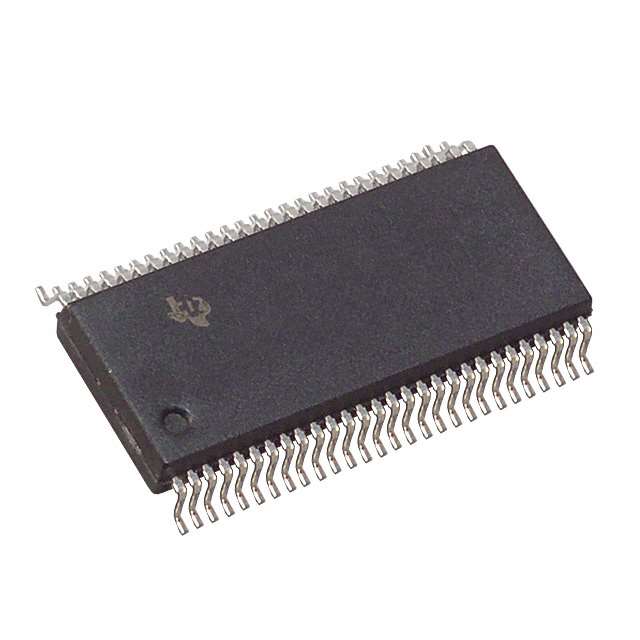

lmages are for reference only.74ABT16841ADL,512
IC 20BIT BUS INTFC LATCH 56SSOP
Datasheet56-BSSOP (0.295", 7.50mm Width)
34,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
D-Type Transparent Latch 2 Channel 10:10 IC Tri-State 56-SSOP
74ABT16841ADL,512
| Category | Integrated Circuits (ICs) - Logic - Latches |
| Manufacturer | NXP USA Inc. |
| Series | 74ABT |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Logic Type | D-Type Transparent Latch |
| Circuit | 10:10 |
| Output Type | Tri-State |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 2 |
| Delay Time - Propagation | 2.2ns |
| Current - Output High, Low | 32mA, 64mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 56-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 56-SSOP |
| Base Product Number | 74ABT16841 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 74ABT16841ADGG,112 | 74ABT16841ADL,518 | 74ABT16373ADGGRE4 | 74ABT16373ADGGRG4 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC 20BIT BUS INTFC LATCH 56TSSOP | IC 20BIT BUS INTFC LATCH 56SSOP | IC 16BIT DE LATCH 48-TSSOP | IC D-TYPE LATCH DL 3-ST 48TSSOP |
| Series | 74ABT | 74ABT | 74ABT | 74ABT |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
