Product CatalogPart Number
74LVC1G08GN,132
Manufacturer
Nexperia USA Inc.Description
IC GATE AND 1CH 2-INP 6XSON
Datasheet
DatasheetPackage
6-XFDFN
In Stock
74,693 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
74LVC1G08GN,132
74LVC1G08GN,132
lmages are for reference only.Payment Methods
Delivery Services
AND Gate IC 1 Channel 6-XSON (0.9x1)
Quick Inquiry
74LVC1G08GN,132
Specifications
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Nexperia USA Inc. |
| Series | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74LVC1G08 |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 μA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Operating Temperature | -40＜C ~ 125＜C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-XSON (0.9x1) |
| Package / Case | 6-XFDFN |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

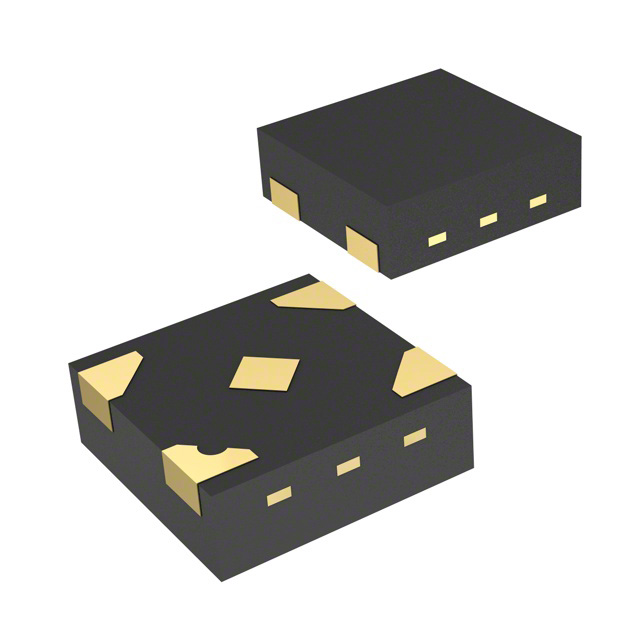

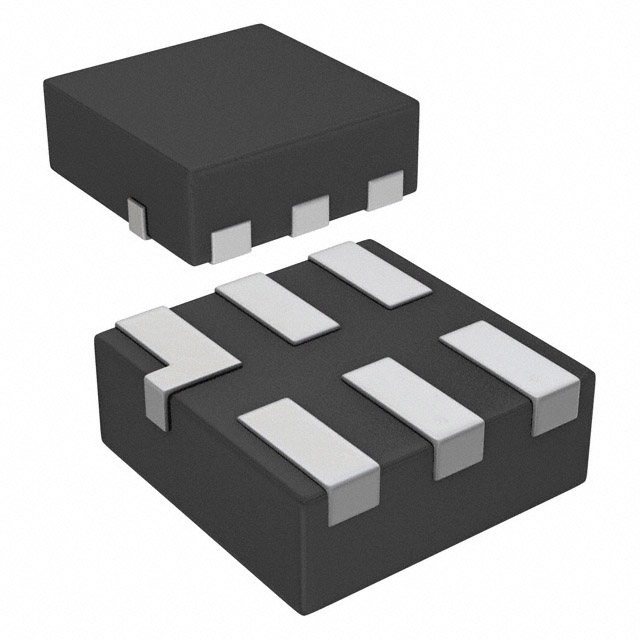

| Part Number | 74LVC1G08GN,132 | 74LVC1G08FS3-7 | 74LVC1G08FW4-7 | 74LVC1G08FW5-7 |
| Manufacturer | NXP USA Inc. | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE AND 1CH 2-INP 6XSON | IC GATE AND 1CH 2-INP DFN0808-4 | IC GATE AND 1CH 2-INP DFN1010-6 | IC GATE AND 1CH 2-INP DFN1010-6 |
| Series | 74LVC | 74LVC | 74LVC | 74LVC |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
