74LVC1G384GV,125

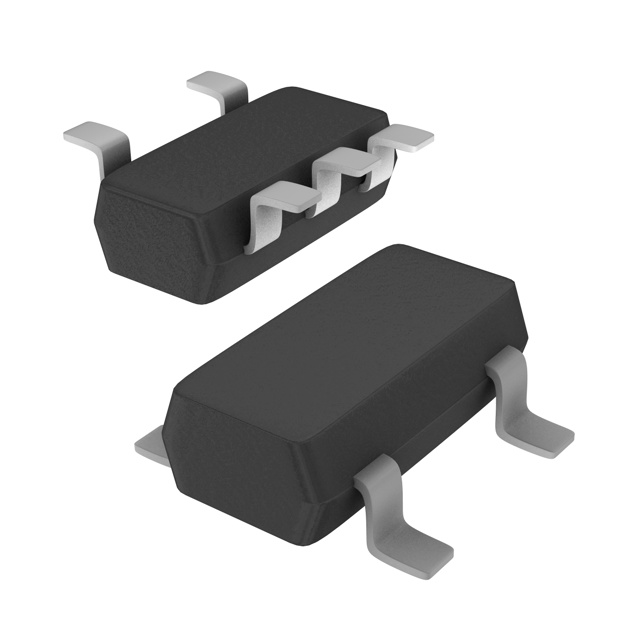

lmages are for reference only.74LVC1G384GV,125
IC SWITCH SPST-NCX1 10OHM SC74A
DatasheetSC-74A, SOT-753
17,996 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 Circuit IC Switch 1:1 10Ohm SC-74A
74LVC1G384GV,125
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Nexperia USA Inc. |
| Series | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 4.2ns, 5ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SC-74A |
| Base Product Number | 74LVC1G384 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | 74LVC1G384GV,125 | 74LVC1G384GM,115 | 74LVC1G384GM,115 | 74LVC1G384GM,132 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC SWITCH SPST-NCX1 10OHM SC74A | IC SWITCH SPST-NCX1 10OHM 6XSON | IC SWITCH SPST-NCX1 10OHM 6XSON | IC SWITCH SPST-NCX1 10OHM 6XSON |
| Series | 74LVC | 74LVC | 74LVC | 74LVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
