74LVC823AD,112
lmages are for reference only.74LVC823AD,112
IC FF D-TYPE SNGL 9BIT 24SO
Datasheet24-SOIC (0.295", 7.50mm Width)
29,327 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Flip Flop 1 Element D-Type 9 Bit Positive Edge 24-SOIC (0.295", 7.50mm Width)
74LVC823AD,112
| Category | Integrated Circuits (ICs) - Logic - Flip Flops |
| Manufacturer | Nexperia USA Inc. |
| Series | 74LVC |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 9 |
| Clock Frequency | 200 MHz |
| Max Propagation Delay @ V, Max CL | 10ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SO |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Base Product Number | 74LVC823 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

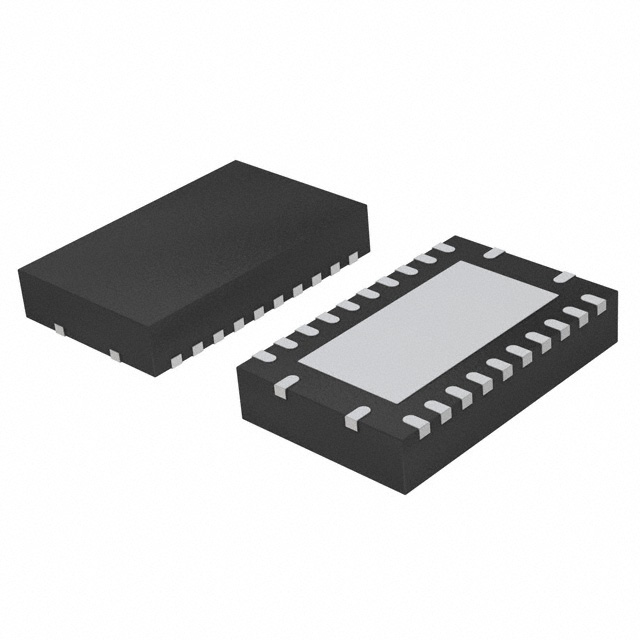

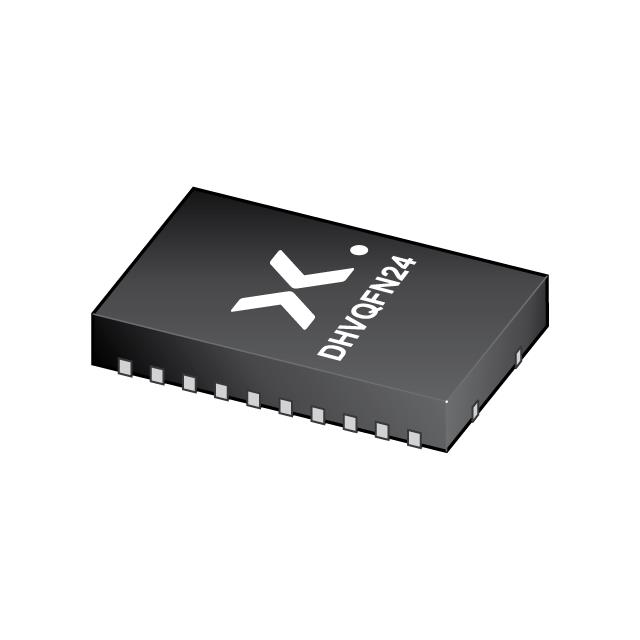

| Part Number | 74LVC823AD,118 | 74LVC823ABQ,118 | 74LVC823ABQ,118 | 74LVC823ABQ-Q100J |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC FF D-TYPE SNGL 9BIT 24SO | IC FF D-TYPE SNGL 9BIT 24DHVQFN | IC FF D-TYPE SNGL 9BIT 24DHVQFN | IC FF D-TYPE SNGL 9BIT 24DHVQFN |
| Series | 74LVC | 74LVC | 74LVC | 74LVC |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
