Product CatalogPart Number
74S253PC
Manufacturer
National SemiconductorDescription
IC SWITCH SP4T X 2 16DIP
Datasheet
DatasheetPackage
16-DIP
In Stock
29,983 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
74S253PC
74S253PC
lmages are for reference only.Payment Methods
Delivery Services
2 Circuit IC Switch 4:1 16-PDIP
Quick Inquiry
74S253PC
Specifications
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | National Semiconductor |
| Series | 74S |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | - |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 4.75V ~ 5.25V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP |
| Supplier Device Package | 16-PDIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

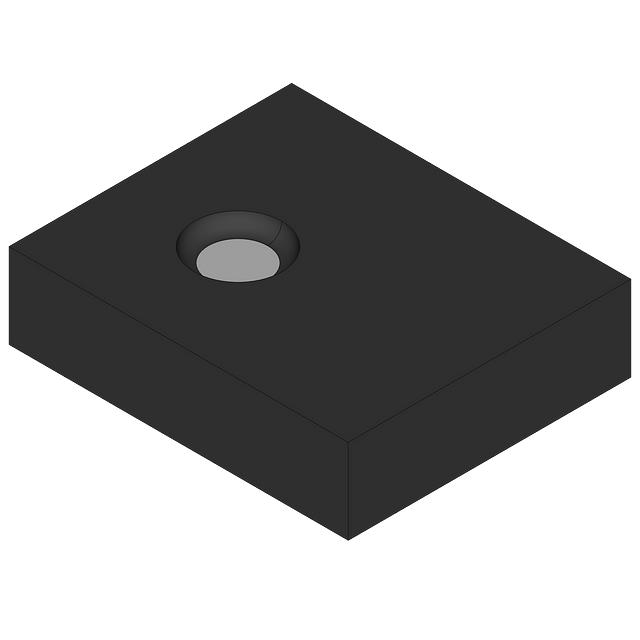

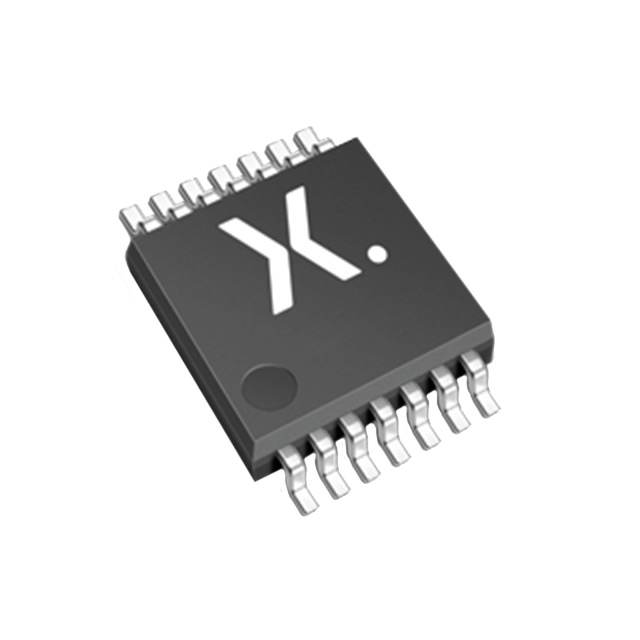

| Part Number | 74S253PC | 74LVC2G53GN,115 | 74HCT4066PW,118 | 74HC4316DB,112 |
| Manufacturer | National Semiconductor | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC SWITCH SP4T X 2 16DIP | IC SWITCH SPDT X 1 10OHM 8XSON | IC SW SPST-NOX4 20OHM 14TSSOP | IC SW SPST-NOX4 135OHM 16SSOP |
| Series | 74S | 74LVC | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
