Product CatalogPart Number
7565B103K103LE
Manufacturer
Knowles NovacapDescription
CAP CER 10000PF 10KV X7R RAD
Datasheet
DatasheetPackage
Radial
In Stock
88,572 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
7565B103K103LE
7565B103K103LE
lmages are for reference only.Payment Methods
Delivery Services
10000 pF ±10% 10000V (10kV) Ceramic Capacitor X7R Radial
Quick Inquiry
7565B103K103LE
Specifications
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Knowles Novacap |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 10000V (10kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.900" L x 0.402" W (22.86mm x 10.20mm) |
| Height - Seated (Max) | 0.975" (24.76mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.780" (19.80mm) |
| Lead Style | Straight |
| Base Product Number | 7565B |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 7565B103K103N | 7565B103K602LE | 7565B104K302N | 7565B153J902NT |
| Manufacturer | Knowles Novacap | Knowles Novacap | Knowles Novacap | Knowles Novacap |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAPACITOR | CAP CER 10000PF 6KV X7R RAD | CAPACITOR | MULTILAYER CERAMIC CAPACITOR |
| Series | Knowles Novacap | Knowles Novacap | Knowles Novacap | Knowles Novacap |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
7565B103K103N
Knowles Novacap
7565B103K602LE
Knowles Novacap
7565B104K302N
Knowles Novacap
7565B153J902NT
Knowles Novacap
7565B223K602LE
Knowles Novacap

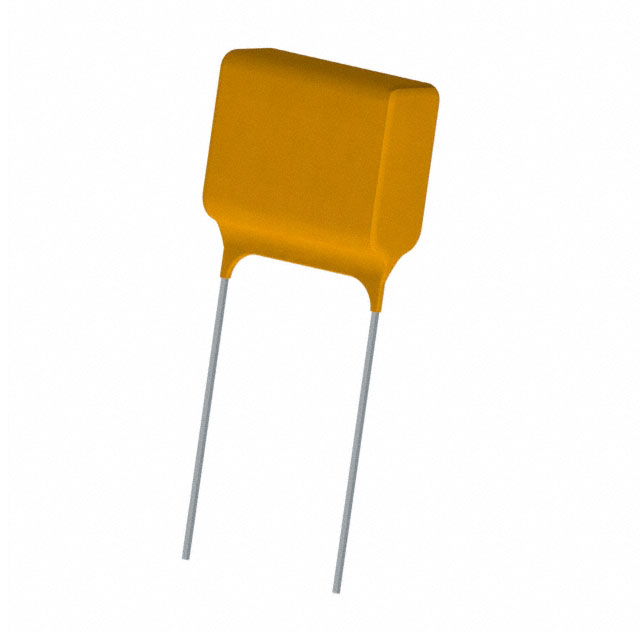

7565B223K802LE
Knowles Novacap
7565B332K602LE
Knowles Novacap
7565B333K602LE
Knowles Novacap
7565B472K103LE
Knowles Novacap

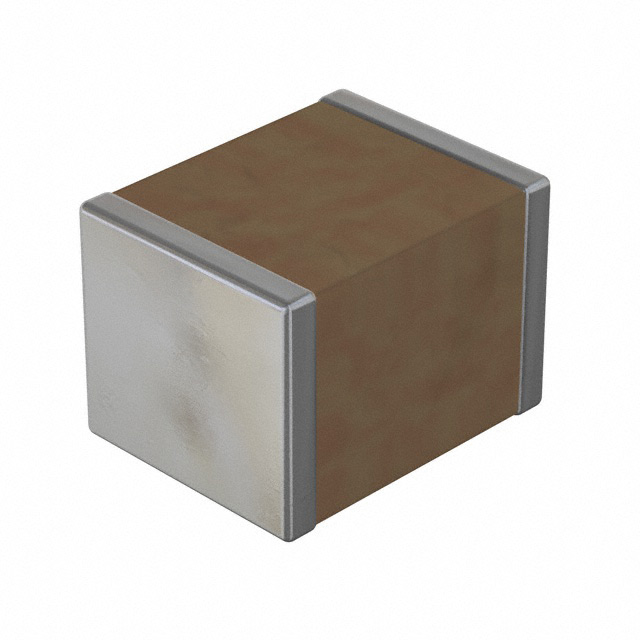

7565B474M102NT
