7687480122
lmages are for reference only.7687480122
WE-TI HV RADIAL LEADED WIRE WOUN
DatasheetRadial, Vertical Cylinder
17,241 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 mH Unshielded Wirewound Inductor 620 mA 1.4Ohm Max Radial, Vertical Cylinder
7687480122
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-TI HV |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.2 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 620 mA |
| Current - Saturation (Isat) | 840mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.4Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial, Vertical Cylinder |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

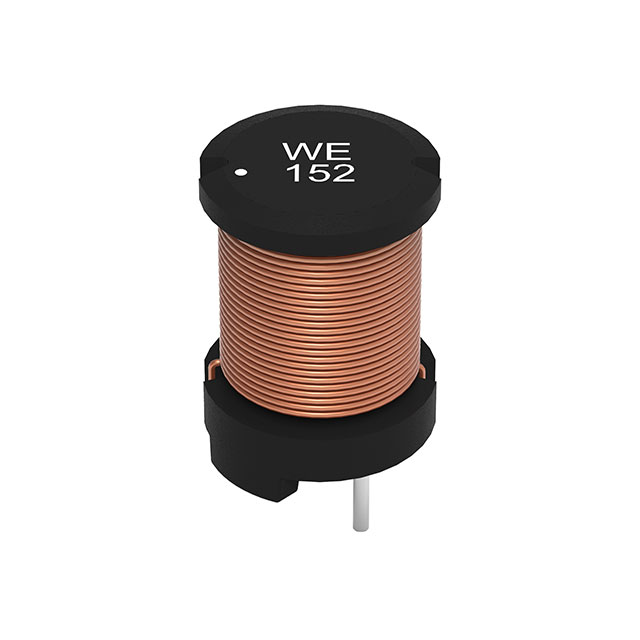

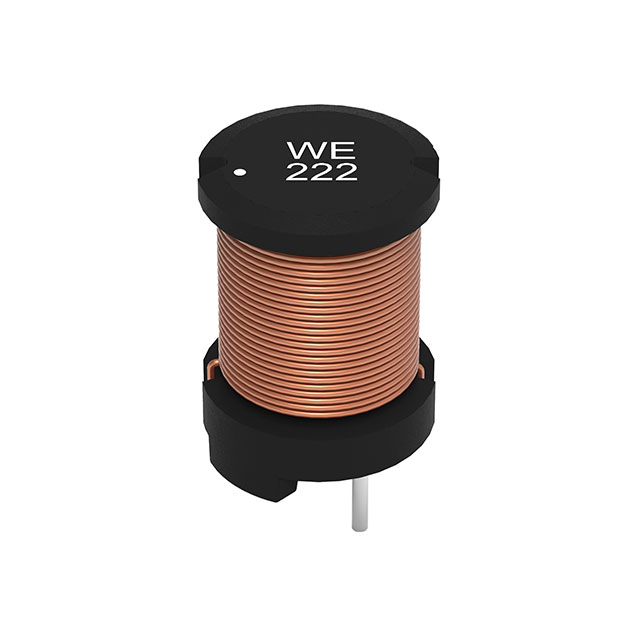

| Part Number | 7687480102 | 7687480152 | 7687480222 | 7687480471 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | WE-TI HV RADIAL LEADED WIRE WOUN | WE-TI HV RADIAL LEADED WIRE WOUN | WE-TI HV RADIAL LEADED WIRE WOUN | WE-TI HV RADIAL LEADED WIRE WOUN |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
