Product CatalogPart Number
770-235
Manufacturer
WAGO CorporationDescription
PLUG 5-POLE, WHITE
Datasheet
DatasheetPackage
-
In Stock
72,446 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
770-235
770-235
lmages are for reference only.Payment Methods
Delivery Services
5 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Free Hanging (In-Line)
Quick Inquiry
770-235
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WAGO Corporation |
| Series | WINSTA® MIDI |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Plug, Male Pins |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 |
| Pitch | 0.394" (10.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 25A |
| Voltage - IEC | 400 V |
| Wire Gauge or Range - AWG | 12-20 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Color | White |
| Operating Temperature | -35°C ~ 85°C |
| Contact Mating Finish | - |
| Features | Locking Feature |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | 9mm |
| Contact Material | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Tail Length | - |
| Insulation Height | 0.508" (12.90mm) |
| Current - UL | 23 A |
| Voltage - UL | 600 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

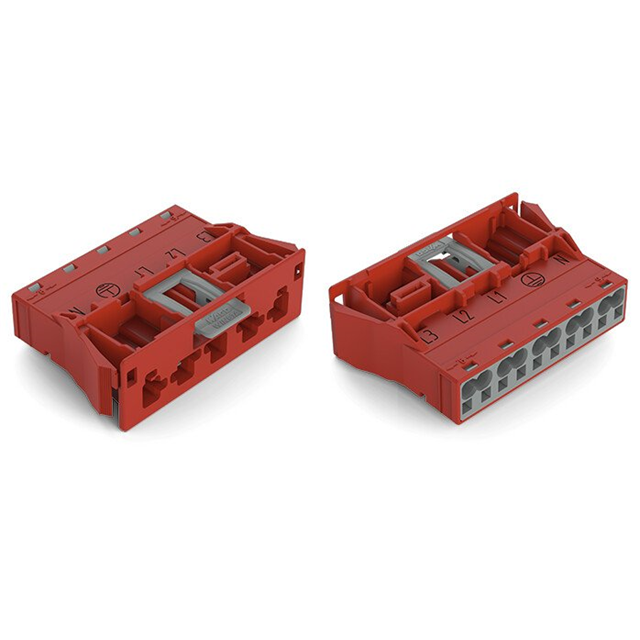

| Part Number | 770-2303 | 770-2313 | 770-2313/007-000 | 770-2315 |
| Manufacturer | WAGO Corporation | WAGO Corporation | WAGO Corporation | WAGO Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SNAP-IN SOCKET RED | SNAP-IN PLUG RED | SNAP-IN PLUG WITH DIRECT GROUND | SNAP-IN PLUG RED |
| Series | WINSTA® MIDI | WINSTA® MIDI | WINSTA® MIDI | WINSTA® MIDI |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products

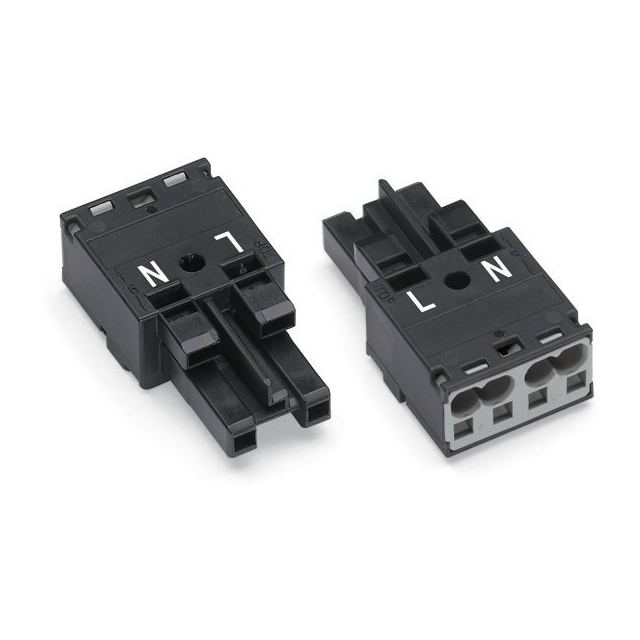

770-202
WAGO Corporation
770-203
WAGO Corporation
770-203/035-000
WAGO Corporation
770-204
WAGO Corporation
770-205
WAGO Corporation
770-2105
WAGO Corporation
770-2115
WAGO Corporation
770-212
WAGO Corporation
770-213
WAGO Corporation
770-213/002-000
WAGO Corporation
770-213/035-000
WAGO Corporation

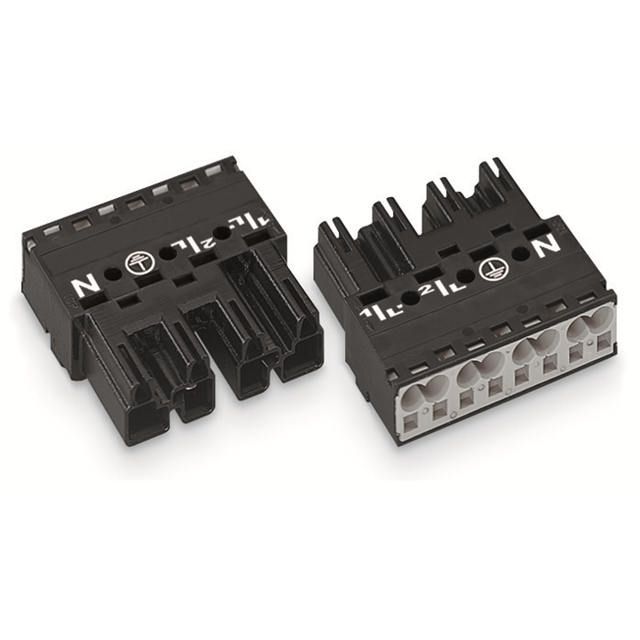

770-214
