Product CatalogPart Number
78437613540100
Manufacturer
Würth ElektronikDescription
THT HIGH CURRENT INDUCTOR 3540;
Datasheet
DatasheetPackage
Nonstandard
In Stock
76,903 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
78437613540100
78437613540100
lmages are for reference only.Payment Methods
Delivery Services
10 µH Unshielded Wirewound Inductor 56.7 A 1.2mOhm Max Nonstandard
Quick Inquiry
78437613540100
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Würth Elektronik |
| Series | WE-HCFAT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 56.7 A |
| Current - Saturation (Isat) | 62A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 17MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.614" L x 1.417" W (41.00mm x 36.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 78437613540068 | 78437613521015 | 78437613521022 | 78437613521033 |
| Manufacturer | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THT HIGH CURRENT INDUCTOR 3540; | THT HIGH CURRENT INDUCTOR 3521; | THT HIGH CURRENT INDUCTOR 3521; | THT HIGH CURRENT INDUCTOR 3521; |
| Series | Würth Elektronik | Würth Elektronik | Würth Elektronik | Würth Elektronik |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products

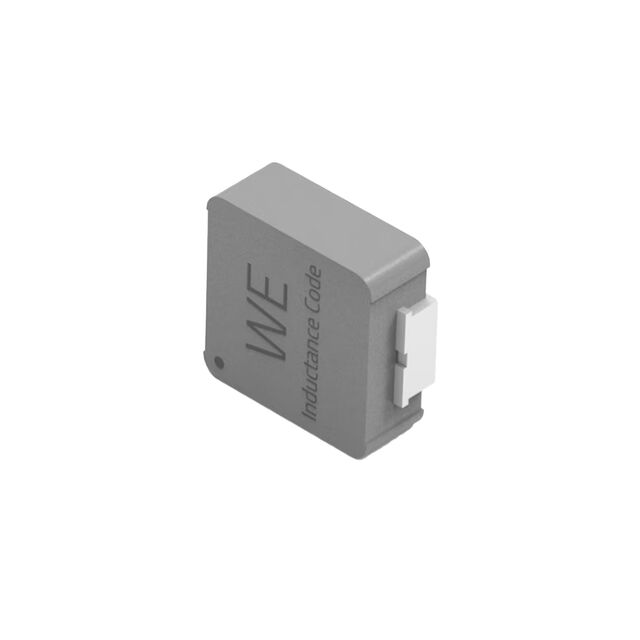

784373170330
Würth Elektronik
784373460056
Würth Elektronik
784373680047
Würth Elektronik
78437613521015
Würth Elektronik
78437613521022
Würth Elektronik
78437613521033
Würth Elektronik
78437613540068
Würth Elektronik
7843763521015
Würth Elektronik

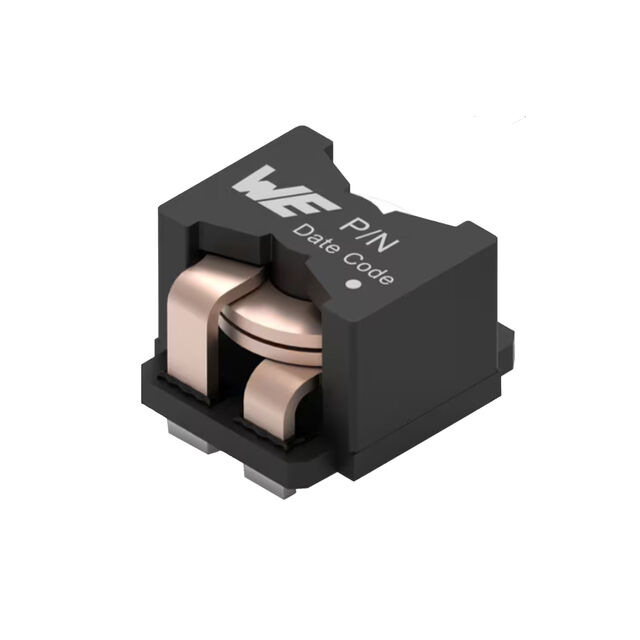

7843763521022
