Product CatalogPart Number
78F100J-RC
Manufacturer
Bourns Inc.Description
FIXED IND 10UH 370MA 750 MOHM TH
Datasheet
DatasheetPackage
Axial
In Stock
66,633 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
78F100J-RC
78F100J-RC
lmages are for reference only.Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 370 mA 750mOhm Max Axial
Quick Inquiry
78F100J-RC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 78F |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 370 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 750mOhm Max |
| Q @ Freq | 40 @ 7.9MHz |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Height - Seated (Max) | - |
| Base Product Number | 78F |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

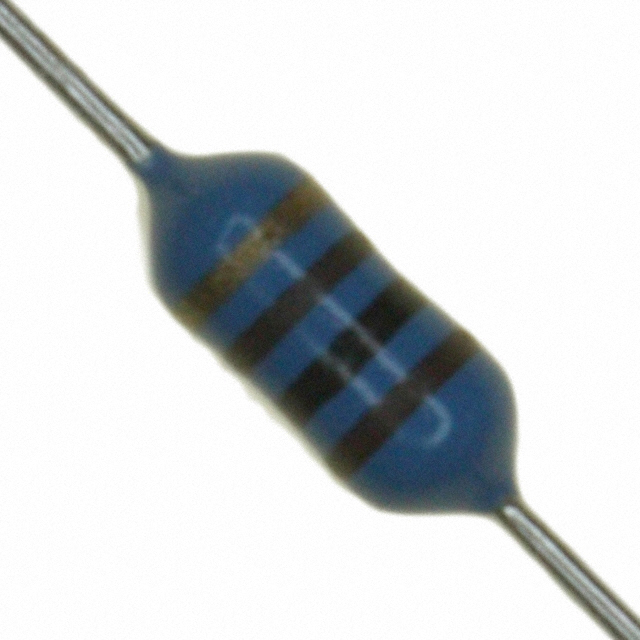

| Part Number | 78F100J | 78F100J-TR-RC | 78F101J | 78F101J-RC |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 130MA 720 MOHM TH | FIXED IND 10UH 370MA 750 MOHM TH | FIXED IND 100UH 125MA 3.5 OHM TH | FIXED IND 100UH 165MA 4.1 OHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
